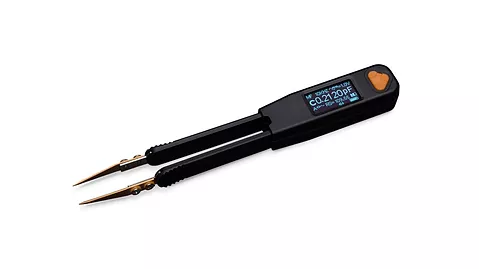

LCR Research LCR Pro1 Plus LCR Meter (100kHz, test led)

Basic Accuracy : R: 0.1%, L: 0.2%, C: 0.2%

Measurement Range (R) : 20mΩ to 10MΩ

Measurement Range (C) : 0.1pF to 10mF

Measurement Range (L) : 10nH to 1.0H

Test Frequency : 100Hz – 100kHz

Test Voltage : 0.2Vrms – 1.0Vrms

Over Voltage Protection (between test tips) : No

Resistance (R) : Yes

Capacitance (C) : Yes

Inductance (L) : Yes

Impedance (Z) : Yes

Dissipation Factor (D) : Yes

Quality Factor (Q) : Yes

Phase Angle (Ө) : Yes

Equivalent Series Resistance (ESR) : Yes

Direct Current Resistance (DCR) : Yes

Diode Check : Yes

LED Testing : Yes

Continuity : Yes

Sorting : Yes

Recording : Yes

Self Calibration : Yes

PC Connectivity : Yes (LCR Link1 Required)

Dimensions (L x W x H) : 151 x 19 x 15mm

Weight : 30g

Display : OLED 0.96″, 128 x 64 Resolution

Battery : 3.7V LiPO, 180mAH, Rechargeable

External Power Source : DC 5V, micro-B USB Connector

SMD Test Probe : Gold Plated (Ultra-Precise)
