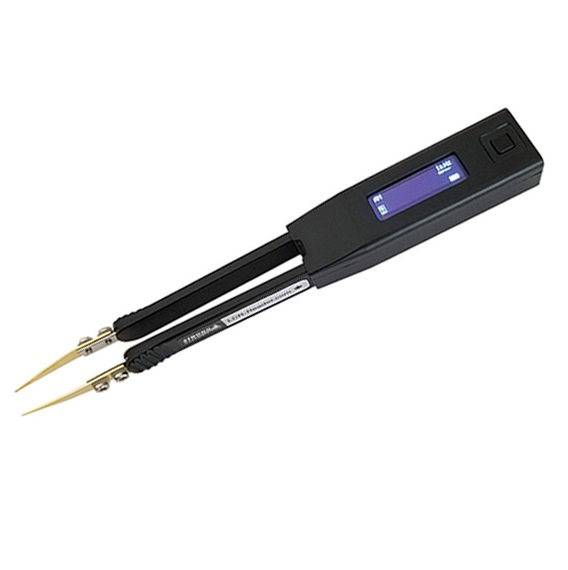

SIBORG MP Handheld LCR and ESR-meter

Technical Specifications

Test Signal: 0.65, 0.1, +/-5% Vrms Sine Wave

Test frequency: 1 kHz, 10 kHz, 120 Hz, 100 Hz

Test Frequency Accuracy: 0.01%

Source Resistance: 1kΩ

Measurement Ranges

Resistance R: 5mΩ to 20 MΩ

CapacitanceC: 1 pF to 680 mF

Inductance L: 10 nH to 100 H

Quality factor Q: 0.001 to 1000

Dissipation factor D: 0.001 to 1000

Physical Specifications

Size: 180 x 30 x 16 mm (7.1 x 1.1 x 0.63 in.)

Weight: 45 grams (1.5 oz.)

Operating temperature: 10°C to 40°C

Battery Type: 3.7V LiPO rechargeable 250mAH

Battery Life (continuous): 80 hours, 2 hours charging cycle
