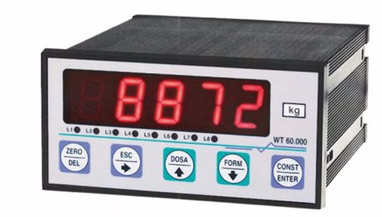

Laumas WT 60 Màn hình hiển thị cân

Power consumption: 230 (115) VAC - 50-60 Hz; 10 VA

Loadcell signal: max 8 ( 350 ohm )

Loadcell Supply: 5VDC / 120 mA

Linearity: < 0.01% Full Scale

Analogic Output Linearity: < 0.03% F.S.

Thermal drift: < 0.0003 % F.S./°C

Analogic output heat drift: < 0.001% F.S./°C

Signal to digital conversion: 24 bit

Internal display jump: +/- 99999 (20% → 100% F.S.)

Range: +/-2 mV +/- 19.5 mV

Digital filter/conversion rate: 0.2 - 25 Hz / 5 - 10 - 25 - 50 readings/sec.

Decimals/steps: 0 - 4 / x 1 x 2 x 5 x 10 x 20 x 50 x 100

Outputs ( relays ): 115VAC / 30VDC , 0.5A cad. / each

Input: N.3

Serial port: COM1 = Rs232 - COM2 = Rs422/Rs485

Baud rate: 1200, 2400, 4800, 9600, 14400, 19200, 28800, 38400, 57600

Humidity: 85%

Storage temperature: -20°C +70°C

Working temperature: -10°C +50°C
