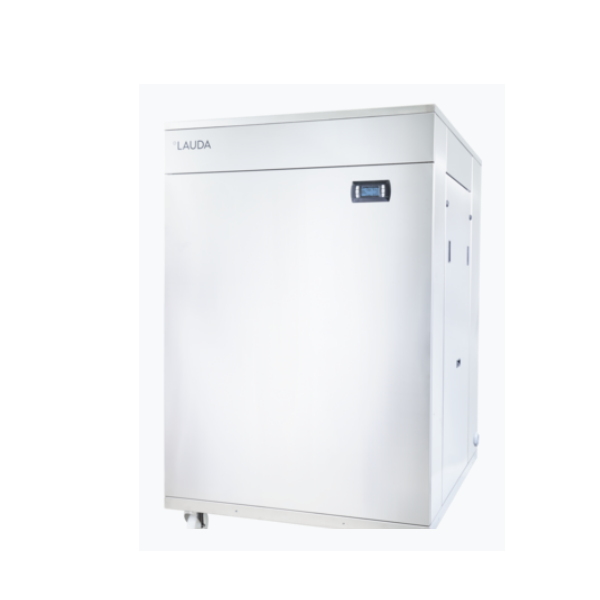

Lauda UT 2505 W Ultratemp Process Thermostat (-5 ... 60 °C, 100 L)

Working temperature range: -5 ... 60°C

Ambient temperature range: -15 ... 50°C

Temperature stability: 0.5 ± K

Heater power max.: 35 kW

Max. discharge pressure 50 Hz: 3.2 bar

Pump Pressure Nominal 50 Hz: 3 bar

Max. flow rate (pressure) 50 Hz: 250 L/min

Pump Flow Max Pressure 60 Hz: 300 L/min

Pump Pressure Nominal 60 Hz: 4.4 bar

Nominal pump flow rate: 90 L/min

Max. filling volume: 100 L

Cooling Water Temperature Min: 0 °C

Cooling Water Temperature Max: 45 °C

Pressure difference cooling water min.: 2 bar

Maximal pressure cooling water: 6 bar

Cooling water flow rate: 60.6 L/min

Dimensions (WxDxH): 1138 x 1486 x 1792 mm

Weight: -565

Power supply: 400 V; 3/PE; 50 Hz & 460 V; 3/PE; 60 Hz

Datasheet
