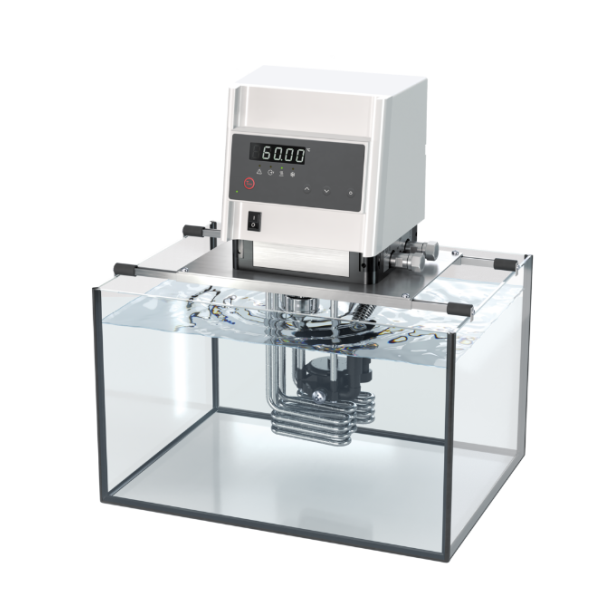

Lauda PBD Bridge Thermostats (30 ... 300 °C, 3.7 kW)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Working temperature range: 30 ... 300 °C
Working temperature range with water cooling: 20 ... 300 °C
Operating temperature range: -30 ... 300 °C
Ambient temperature range: 5 ... 40 °C
Temperature stability: 0.01 ± K
Heater power max.: 3.6 kW
Current consumption: 16 A
Max. power consumption: 3.7 kW
Max. discharge pressure: 1.1 bar
Max. pump flow pressure: 32 L/min
Dimensions (WxDxH): 320 x 185 x 400 mm
Weight: 8 kg
Power supply: 230 V; 50/60 Hz
