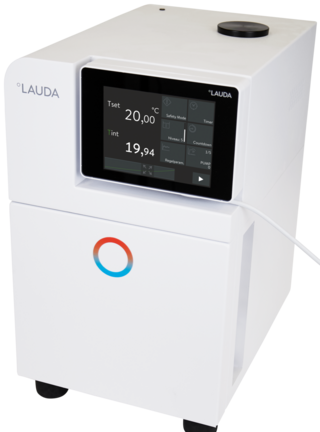

Lauda P 2 EC Heating Circulation Thermostat (80 ... 250 °C, 4.4L)

Working temperature range: 80 ... 250 °C

Working temperature range with water cooling: 20 ... 250 °C

Operating temperature range: -30 ... 250 °C

Ambient temperature range: 5 ... 40 °C

Temperature stability: 0.05 ± K

Heater power max.: 1.8 kW

Max. power consumption: 1.9 kW

Current consumption: 16 A

Max. discharge pressure: 0.7 bar

Pump_suction: 0.4 bar

Max. pump flow pressure: 22 L/min

Min. filling volume: 2.4 L

Max. filling volume: 4.4 L

Dimensions (WxDxH): 250 x 365 x 425 mm

Power supply: 100-120 V; 50/60 Hz

Power plug: Power cord without plug (AWG)
