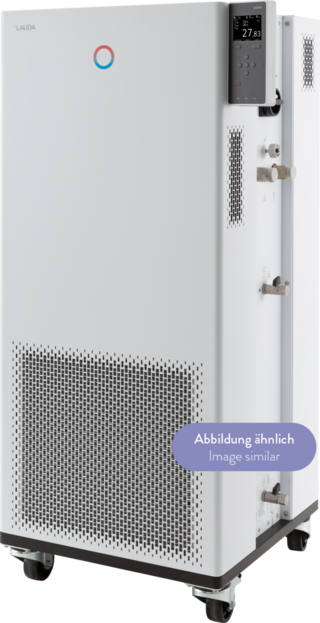

Lauda IN 530 T Integral Process Thermostat (-30 ... 120 °C, 7.2 L ~ 20.5L)

Working temperature range: -30 ... 120 °C

Ambient temperature range: 5 ... 40 °C

Temperature stability: 0.05 ± K

Heater power max.: 8 kW

Max. power consumption: 11 kW

Current consumption: 16 A

Max. discharge pressure: 3.5 bar (50 Hz), 4.6 bar (60 Hz)

Max. pump flow pressure: 40 L/min (50 Hz); 65 L/min (60 Hz)

In / Outlet connection thread (outside): G 3/4"

Min. filling volume: 7.2 L

Max. filling volume: 20.5 L

Dimensions (WxDxH): 560 x 550 x 1325 mm

Weight: 150 kg

Noise level: 66 dB(A)

Power supply: 400 V; 3/PE; 50 Hz & 460 V; 3/PE; 60 Hz

Datasheet
