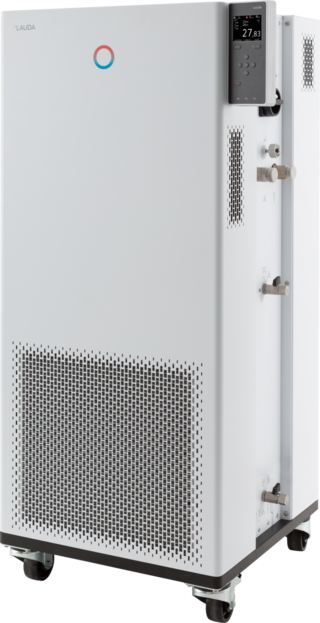

Lauda IN 280 XTW Integral Process Thermostat (-80 ... 220 °C, 4.8L ~ 17.2L)

Working temperature range: -80 ... 220 °C

Ambient temperature range: 5 ... 40 °C

Temperature stability: 0.05 ± K

Heater power max.: 4 kW

Max. power consumption: 9 kW

Current consumption: 13.5 A

Max. discharge pressure: 3.1 bar

Max. pump flow pressure: 65 L/min

In / Outlet connection thread (outside): M30 x 1.5

Min. filling volume: 4.8 L

Max. filling volume: 17.2 L

Water cooling connection thread (inside): 3/4 ″

Recommended cooling water temperature: 15 °C

Cooling water flow rate: 2.7 L/min

Pressure difference cooling water min.: 0.8 bar

Maximal pressure cooling water: 10 bar

Dimensions (WxDxH): 560 x 550 x 1325 mm

Weight: 200 kg

Noise level: 62 dB(A)

Power supply: 400 V; 3/PE; 50 Hz & 460 V; 3/PE; 60 Hz
