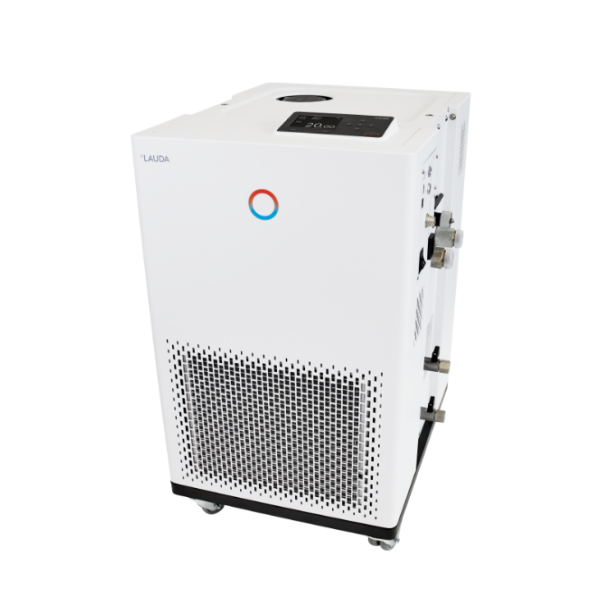

Lauda IN 150 XT Integral Process Thermostat (-45 ~ 220 °C, 2.5L ~ 8.7L)

Working temperature range: -45 ... 220°C

Ambient temperature range: 5 ... 40 °C

Temperature stability: 0.05 ± K

Heater power max.: 3.5 kW

Max. power consumption: 3.7 kW

Current consumption: 16 A

Max. discharge pressure: 3.1 bar

Max. pump flow pressure: 65 L/min

In / Outlet connection thread (outside): M30 x 1,5

Inlet/outlet hose size: 3/4″

Min. filling volume: 2.5 L

Max. filling volume: 8.7 L

Dimensions (WxDxH): 430 x 550 x 760 mm

Weight: 106 kg

Noise level: 60 dB(A)

Power supply: 230 V; 50 Hz
