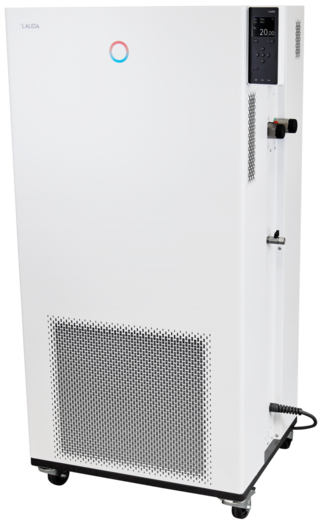

Lauda IN 1030 T Integral Process Thermostat (-30 ... 150 °C, 9.7 L ~ 25.5 L)

Working temperature range: -30 ... 150 °C

Ambient temperature range: 5 ... 40 °C

Temperature stability: 0.1 ± K

Heater power max.: 8 kW

Max. power consumption: 11 kW

Current consumption: 16 A

Max. discharge pressure: 5.5 bar (50 Hz), 7.0 bar (60 Hz)

Max. pump flow pressure: 60 L/min (50 Hz); 70 L/min (60 Hz)

In / Outlet connection thread (outside): M38 x 1.5

Min. filling volume: 9.7 L

Max. filling volume: 25.5 L

Dimensions (WxDxH): 760 x 650 x 1605 mm

Weight: 219 kg

Noise level: 70 dB(A)

Power supply: 400 V; 3/PE; 50 Hz & 460 V; 3/PE; 60 Hz
