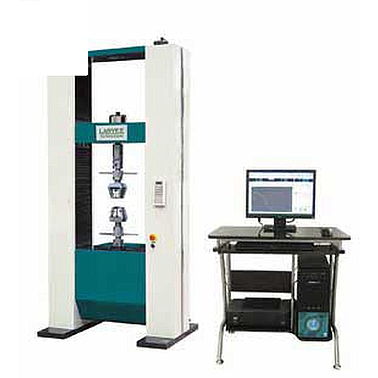

Laryee UE34300 Computer Control Electronic Universal Testing Machine (300Kn, 0.4%--100%F.S)

Maximum force: 300KN

Machine type: Floor

Grade: 0.5

Measuring range of force: 0.4%~100%FS

Accuracy: ±0.5%

Resolution of force: 1/500000 of maximum force

Resolution of displacement: 0.001mm. Accuracy: ≤±0.5%

Speed range of crosshead: 0.001~300mm/min

Valid tension space: 600mm

Total Crosshead Travel: 1250mm

Sample thickness

Flat jaw: 0-18mm

Round jaw: Φ10-Φ39mm

Power supply: 3P,380V,50/60Hz (3P,220V can be ordered)

Working condition: RT 10~40°C, relative humidity 90%

Dimension of host machine: 1160×950×2700 mm 1800kg
