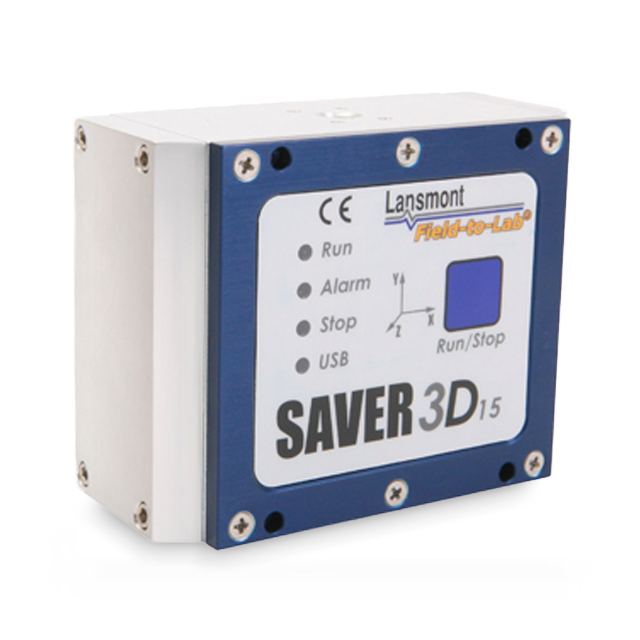

Lansmont SAVER 3D15 Shock and vibration field data recorder

Envelope Size:  3.7 x 2.9 x 1.7 in. (95 x 74 x 43 mm)

Weight:  16.7 oz. (473 grams)

Acceleration Ranges:  5, 10, 20, 50 g (full scale)

Accelerometer Type:  Triaxial MEMS

Sampling Rates:  50, 100, 200, 250, 500, 1000, 2500, and 5000 samples per second

A/D Conversion:  16-bit

Anti-Alias Filter:  4-pole, low-pass Butterworth filter, 10, 20, 25, 50, 100, 200, 250 and 500 Hz. (cut-off frequency)

3-dB Frequency Response:  DC to filter setting

Temperature Measurement Range:  -40° to 60°C (-40° to 140°F)

Humidity Measurement Range:  5% to 95% RH, non-condensing

Datasheet
