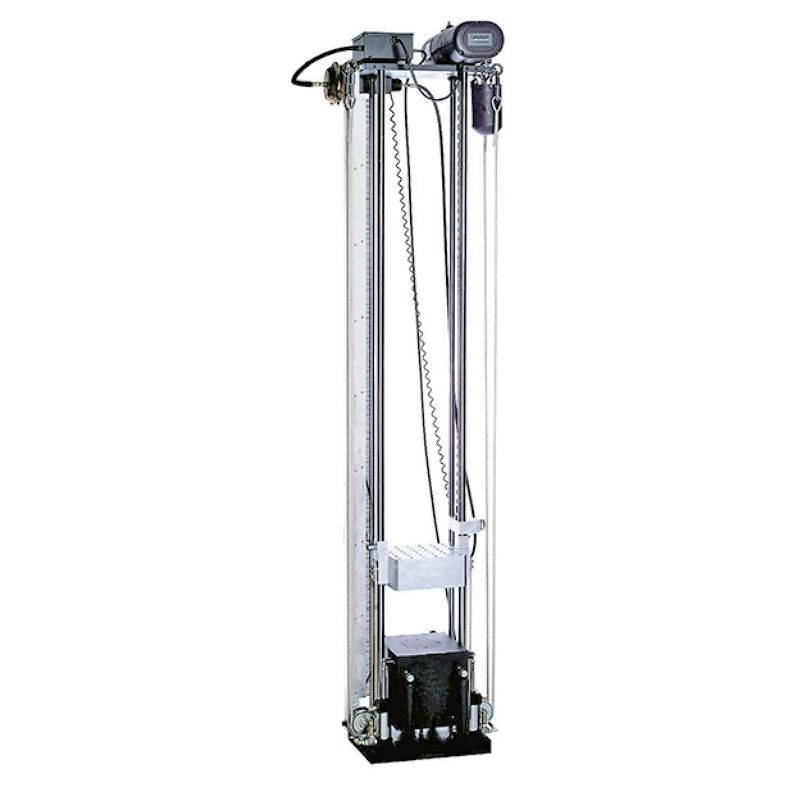

Lansmont P30 Performance shock test system (5000g)

TABLE DIMENSIONS

Side to Side:  11.8 in. (30 cm)

Front to Back : 11.8 in. (30 cm)

TEST CAPABILITIES

Max. Acceleration:  5000g (10000g optional)

Min. Pulse Duration:  0.25 msec (half sine)

Max. Velocity Change : 22 – 55 ft./sec (6.7 – 16.8 m/sec)

Pulse Waveforms : Half Sine; Trapezoidal*; Terminal Peak Sawtooth* (*with Optional Programmers )

MAXIMUM PAYLOAD: 110 lbs. (50 kg)

MACHINE ENVELOPE DIMENSIONS

Height: 98 – 146 in. (249 – 371 cm)

Side to Side:  21 in. (53 cm)

Front to Back:  24 in. (61 cm)

POWER REQUIREMENTS

Machine : 200 – 240 VAC/3Φ/50 – 60 Hz: 8 amp min.; 380 – 480 VAC/3Φ/50 – 60 Hz: 4 amp min.

Controller:  100 – 120 VAC/1Φ/50 – 60 Hz: 3 amp min.; 200 – 240 VAC/1Φ/50 – 60 Hz: 3 amp min.

PNEUMATIC REQUIREMENTS

Plant Air: 90 psi (6.2 bar)
