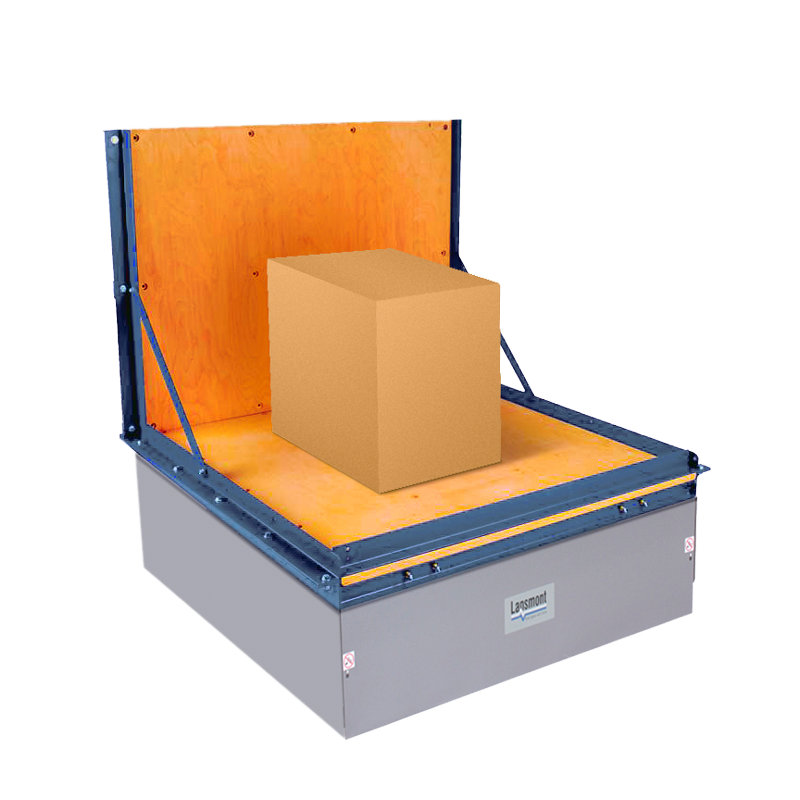

Lansmont MS400 Mechanical Shaker

Test Bed Size : 48 in. square (122 cm square)

Option Fence Size (L x H) : 36 in. (91 cm) on one side

Payload Capacity : 400 lb. (181 kg)

Frequency Range:  2.0 – 5.0 Hz

Motion : Circular-Synchronous,Vertical-Linear, 30° out-of-phase (optional)

Maximum Acceleration:  1.25 g

Displacement : 1 in. (2.54 cm) fixed

Max. Acceleration : 1.25 g Peak

Machine Envelope:  54 in. x 60 in.(137.2 cm x 152.4 cm) 66 in. x 72 in. (168 cm x 183 cm)

Machine Capacity : 400 lbs. (181 kg)

UTILITIES:

Power -:

Voltage : 240 VAC +/- 10%

Frequency : 50 Hz – 60 Hz

Phase : Single Phase

Current : 20A

Datasheet
