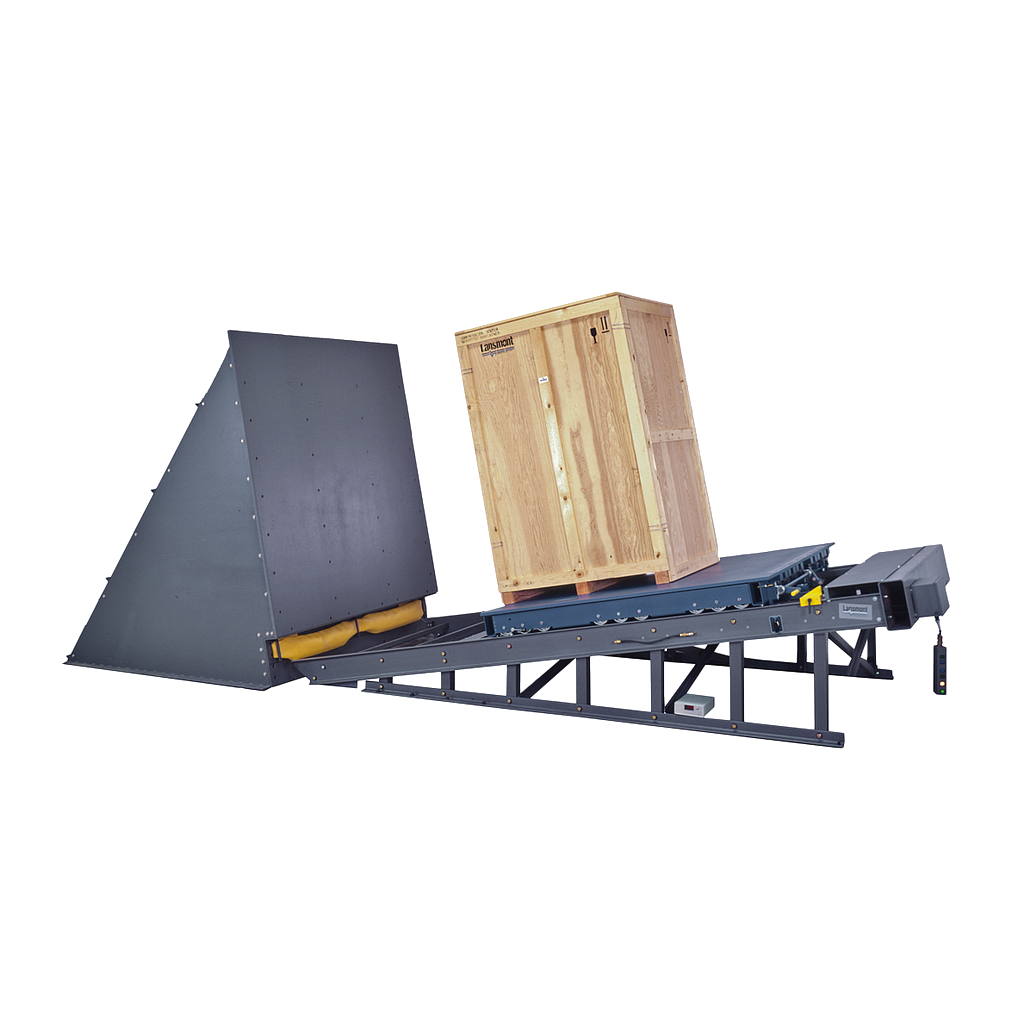

Lansmont IT 213-6K Inclined Impact Tester (2721 kg)

Carriage Size (L x W) : 84 x 84 in. (213 x 213 cm)

Backstop Size (W x H):  96 x 96 in. (244 x 244 cm)

Velocity: 7.3 ft./sec. (2.2 m/sec.)

Payload Capacity : 6000 lb. (2721 kg)

SPECIFICATIONS:

Power -:

Standard voltages: : 208-230 VAC ; 1 phase; 50-60 Hz; 25 amps

Plant air: : 80 psi (5.6 kg/cm2)

PHYSICAL:

Table size: 84 in. (213 cm) square

Backstop dimensions : 96 in. (244 cm) square

Velocity: 7.3 ft./sec. (2.2 m/sec)

Payload capacity: 6000 lbs. (2721 kg)

MACHINE ENVELOPE (standard machine):

Height: 9.5 ft. (2.9 m)

Width:  9 ft. (2.7 m)

Length:  24 ft. (7.3 m)

Datasheet
