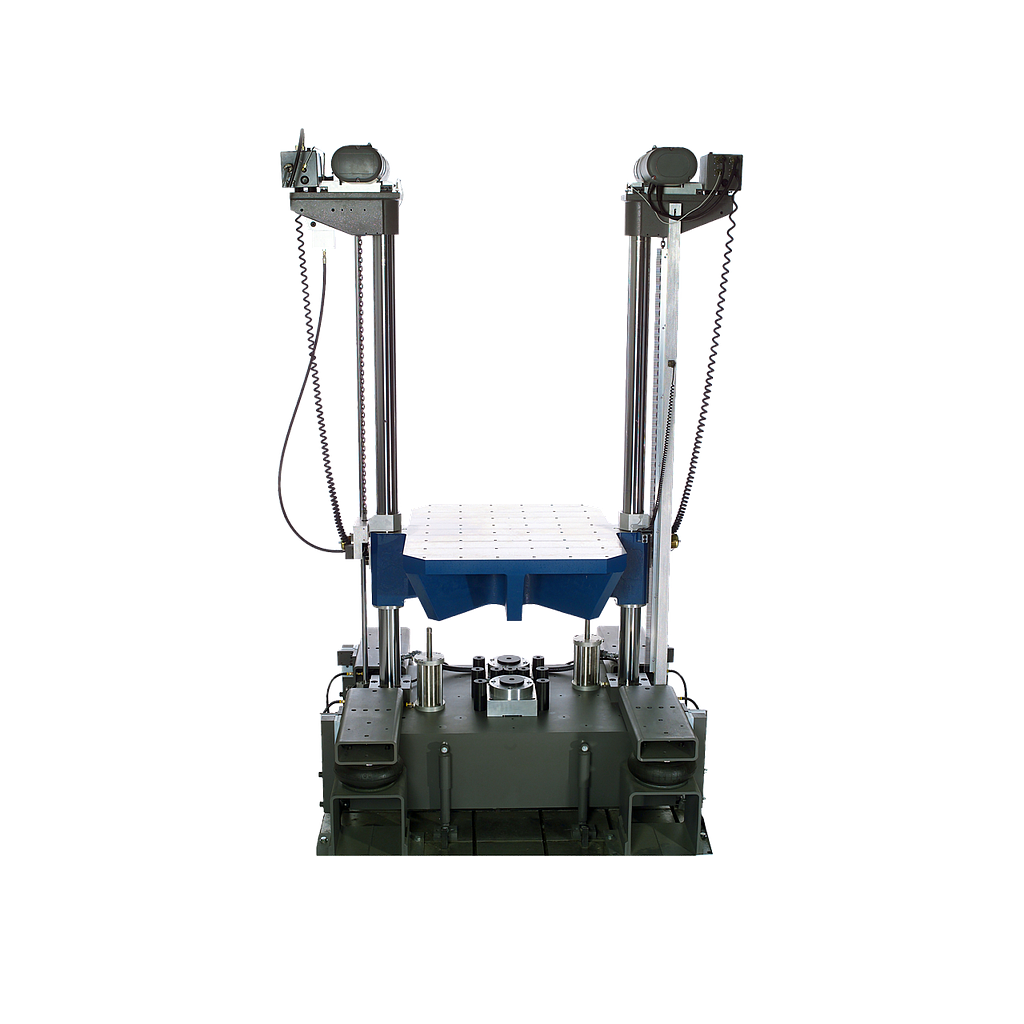

Lansmont 95/115D Shock Test System (1000g)

TABLE SIZE

Side to Side : 37.4 in. (95 cm)

Front to Back: 45.3 in. (115 cm)

TEST CAPABILITIES

Max. Acceleration:  1.000g

Min. Pulse Duration : 2 msec (half sine)

Max. Velocity Change

 Free Fall : 20 – 25 ft./sec (6.1 – 7.6 m/sec)

 Accelerated : 25 – 50 ft./sec (7.6 – 15.2 m/sec)

Pulse Waveforms:  Half Sine; Trapezoidal*; Terminal Peak Sawtooth* (*with Optional Programmers )

MAXIMUM PAYLOAD

 Free Fall:  2.500 lbs. (1.134 kg)

 Accelerated : 1.000 lbs. (454 kg)

DIMENSIONS

Height : 128 – 208 in. (325 – 532 cm)

Side to Side:  79 in. (201 cm)

Front to Back:  56 in. (142 cm)

POWER REQUIREMENTS

Machine : 200 – 240 VAC/3Φ/50 – 60 Hz: 8 amp min.; 380 – 480 VAC/3Φ/50 – 60 Hz: 4 amp min.

Controller : 100 – 120 VAC/1Φ/50 – 60 Hz: 3 amp min.; 200 – 240 VAC/1Φ/50 – 60 Hz: 3 amp min.

PNEUMATIC REQUIREMENTS

Nitrogen:  2.200 psi (150 bar)
