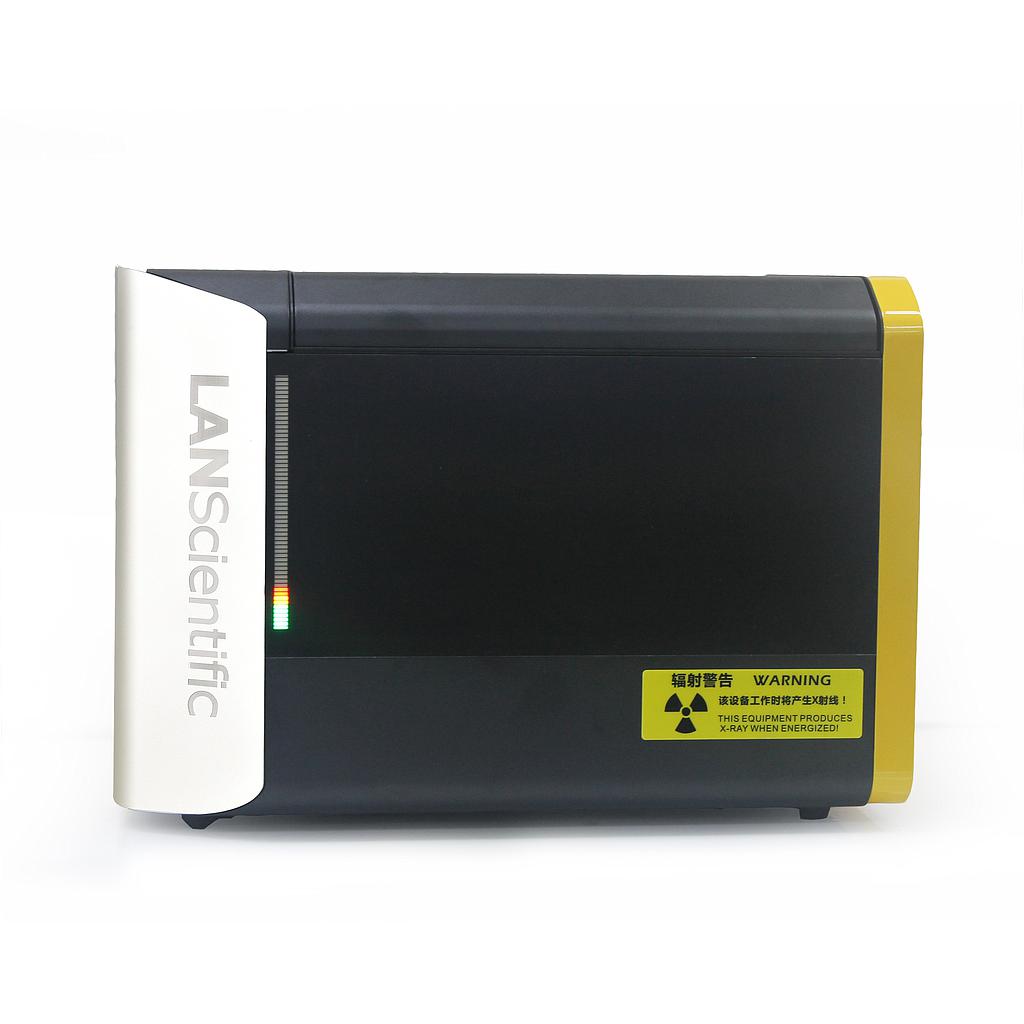

LANScientific ScopeX ASH ASH Analyzer

Measurement: X-ray fluorescence analysis

Determination method: Energy dispersion type

Determination of the object: Solid, liquid, powder

Range of measurement: All the elements from sodium to uranium. It can analyze Fe, Ca, Mg, K, Na, Mn, P, Si, Al, Ti, S, and other elements, and the elements

can also be added or modified by the user to suit the use of specific environment.

Equipment size: W570mm x D400mm x H400mm

Equipment weight: 47kg

Sample room size: W368mm x D304mm x H78mm

Open way: The automatic control

X-ray generating department

X-ray tube: High-performance miniature X-ray tube

Target materials: Target W/Ag/Rh

Voltage: 5-50KV

Current: 0-1000μA

Cooling way: Air cooling

Collimator: 5mm, 3mm, 1mm, 0.5mm switchover automatically

Detector

Type: BOOST SDD

Cooling way: Peltier cooling

Resolution ratio: ≤125ev

Sample room

Measurement situation: Atmosphere, Vacuum, Helium

Sample observation: 5 megapixel high-definition industrial camera

Sampler: Manual filling (ScopeX ASH 980CS)

Automatic filling(ScopeX ASH 980CSR)

Datasheet
