LANGER EMV-Technik P1601 / P1702 set RF Field Emission (up to 1 GHz)

Scope of delivery

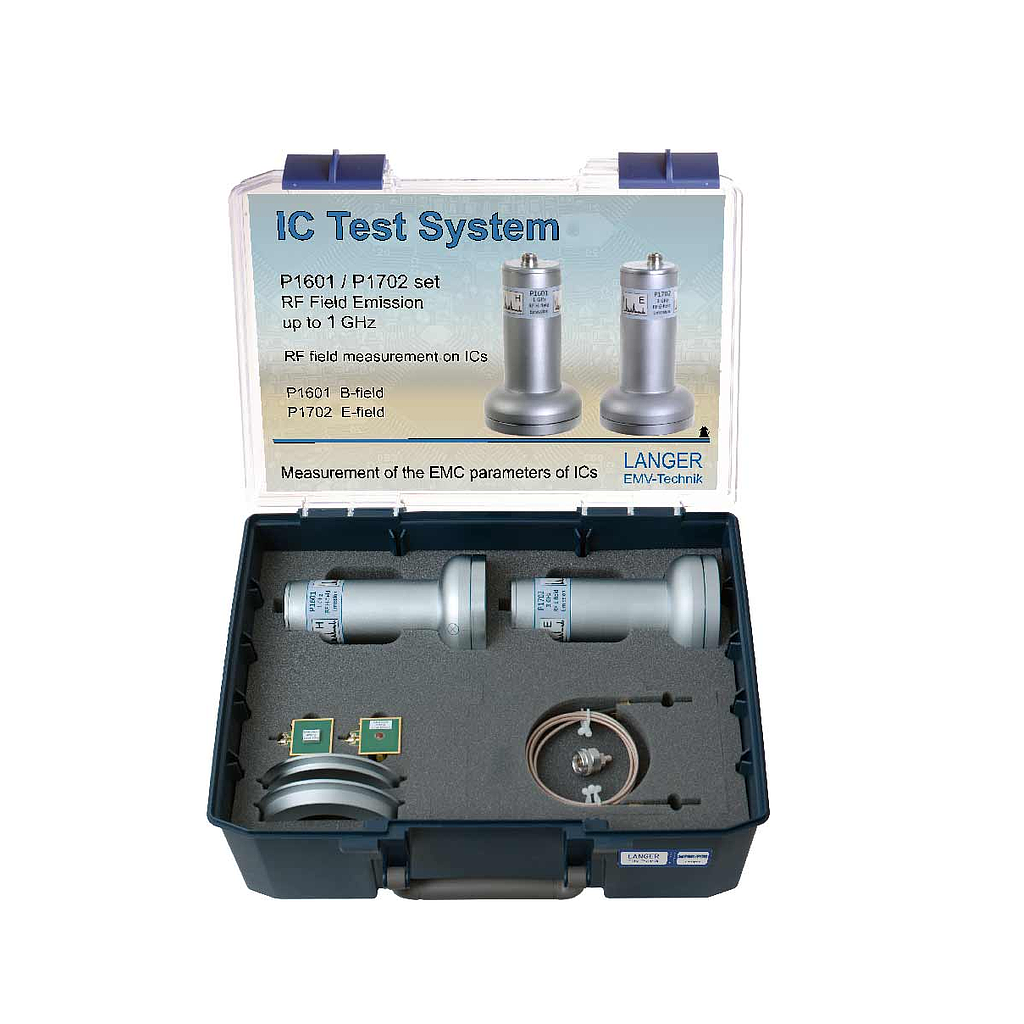

1x P1601, RF Magnetic Field Probe

1x P1702, RF E-Field Probe

1x CS-ESA set, ChipScan-ESA Software / USB

1x BPM 02, dB/dt Field Meter

1x EPM 02, dE/dt Field Meter

1x D70 h03, Spacer Ring, 3 mm

1x D70 h10, Spacer Ring, 10 mm

1x SMA-SMA 1 m, SMA-SMA Measuring Cable

1x SMA-SMB 1 m, SMA-SMB Measuring Cable

1x N-SMA, Adapter

1x P1600 / P1700 case, System Case

1x P1600 / P1700 m, P1602 / P1702 Set User Manual

Short description

The RF field emission probe set consists of a magnetic field probe and an E field probe. They are used to measure respective near fields, which are coupled out by an IC in operation/ a running IC. The measured data help to assess the seperate emission of an IC according to the types of field.

Measurements and all calculations are carried out with the software ChipScan-ESA.
