LANGER EMV-Technik P1401 / P1501 set RF Field Coupling (up to 1 GHz)

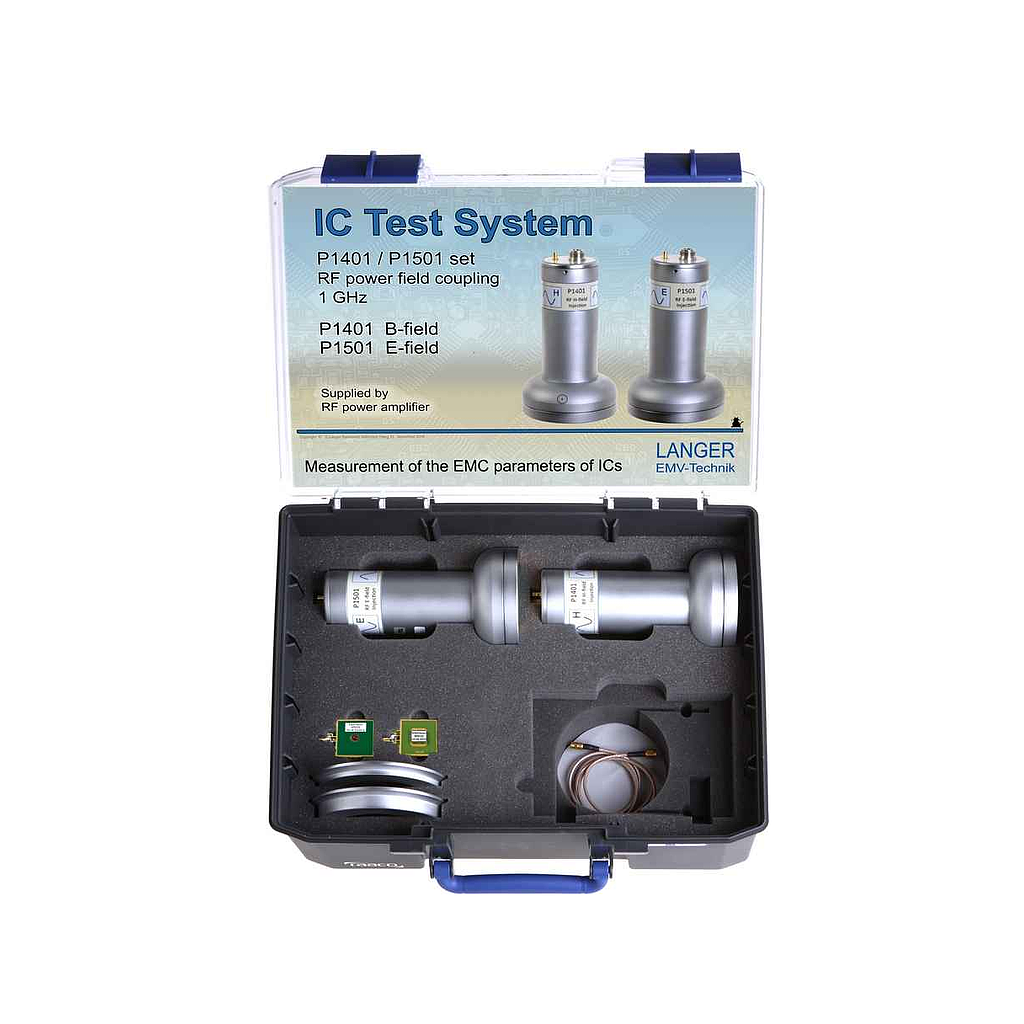

Scope of delivery

1x P1401, RF Magnetic Field Source up to 1 GHz

1x P1501, RF E-Field Source up to 1 GHz

1x BPM 02, dB/dt Field Meter

1x EPM 02, dE/dt Field Meter

1x D70 h03, Spacer Ring, 3 mm

1x D70 h10, Spacer Ring, 10 mm

2x SMA-SMB 1 m, SMA-SMB Measuring Cable

1x P1401 / P1501 case, System Case

1x P1400 / P1500 m, P1401 / P1501 Set User Manual

Short description

The RF field coupling up to 1 GHz probe set tests the ICs in terms of their immunity under the influence of RF magnetic fields (P1401) or RF E-fields (P1501).

These analyzes are the basis for an EMC compatible development of ICs. Furthermore, the determined RF parameters are helpful for the IC user to develop optimal IC applications.

In addition to the test set-up an ICE1 test environment, a RF generator and a power amplifier are needed.

Field sources can only be run in connection with a short circuit- and open circuit proof power amplifier.
