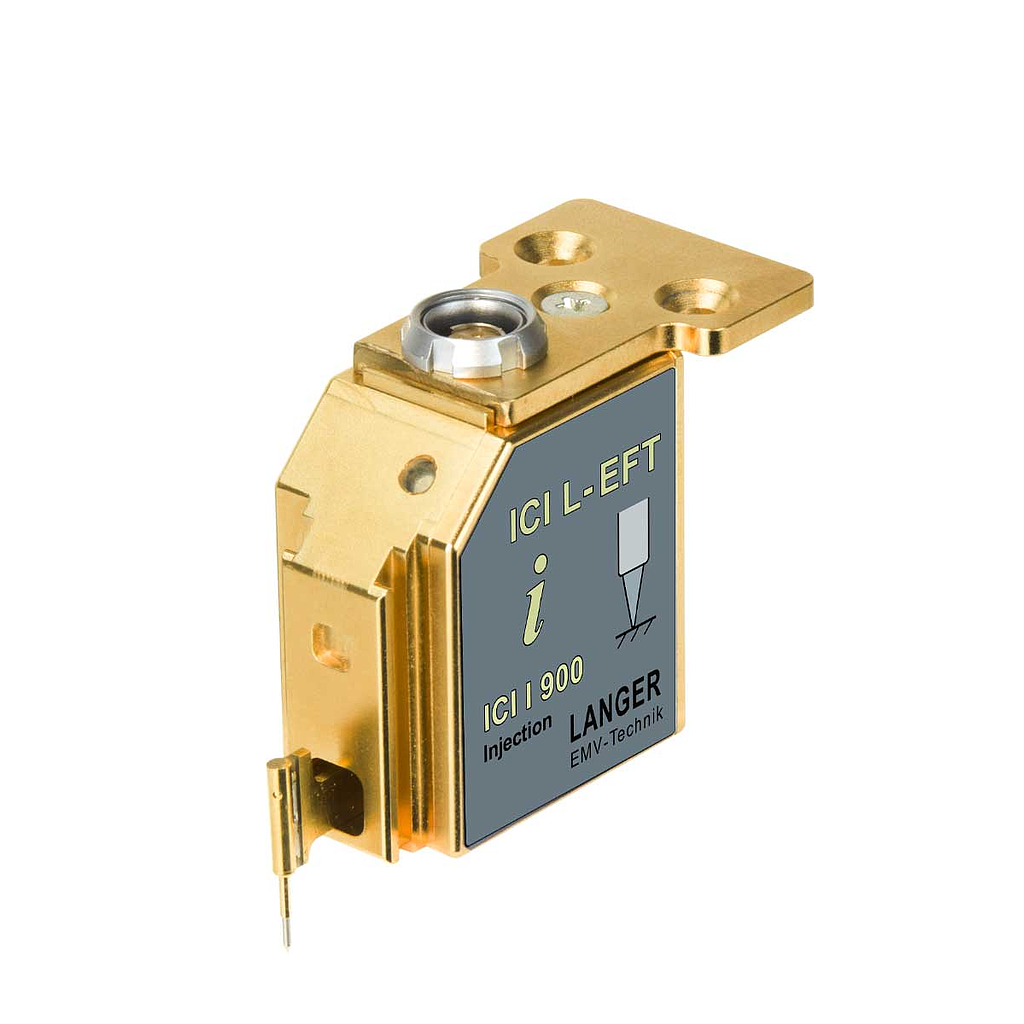

LANGER EMV-Technik ICI I900 L-EFT Pulse Current Source (FBBI)

Technical parameters:

Probe head: Spring Pin

Max. current (1 Ω load): 4A

Pulse parameter:

Rise time: < 2 ns

Repetition frequency: 0.1 Hz - 20 kHz

Polarity (set by software): + / - / alternating

Measuring output: 50 Ω

Trigger-pulse delay (Bypass Mode - Delay Line):

min. Trigger-pulse delay (typ.): 70 ns

max. Trigger-pulse delay (typ.): 420 ns

max. Jitter (typ.): ± 1 ns

Supply voltage: BPS 202

Weight: 70 g

Sizes (L x W x H): (26 x 43 x 53) mm

Short description

The ICI I900 L-EFT pulse current source couples fast transient pulses into a test IC (Forward body biased injection). This source allows for side channel analysis or testing the immunity of individual areas of the IC.

typ. - Refer to parameter sheet
