LANGER EMV-Technik ICI 03 L-EFT set IC EM Pulse Injection Langer Pulse

Technical parameters

Pulse parameter:

Rise time: < 2 ns

Repetition frequency: 0.1 Hz - 20 kHz

Polarity (set by software): + / - / alternating

Trigger-pulse delay (Bypass Mode - Delay Line):

min. Trigger-pulse delay (typ.): 100 ns

max. Trigger-pulse delay (typ.): 450 ns

max. Jitter (typ.): ± 1 ns

Trigger-pulse delay (Timer Mode)

min. Trigger-pulse delay (typ.): 200 ns

max. Trigger-pulse delay (typ.): 100 ms

max. Jitter (typ.): ± 15 ns

Trigger delay, min. increment: 10 ns

Supply voltage: BPS 202

Software: BPS 202-Client / DLL (32 Bit / 64 Bit); Win XP SP3 or higher

Scope of delivery

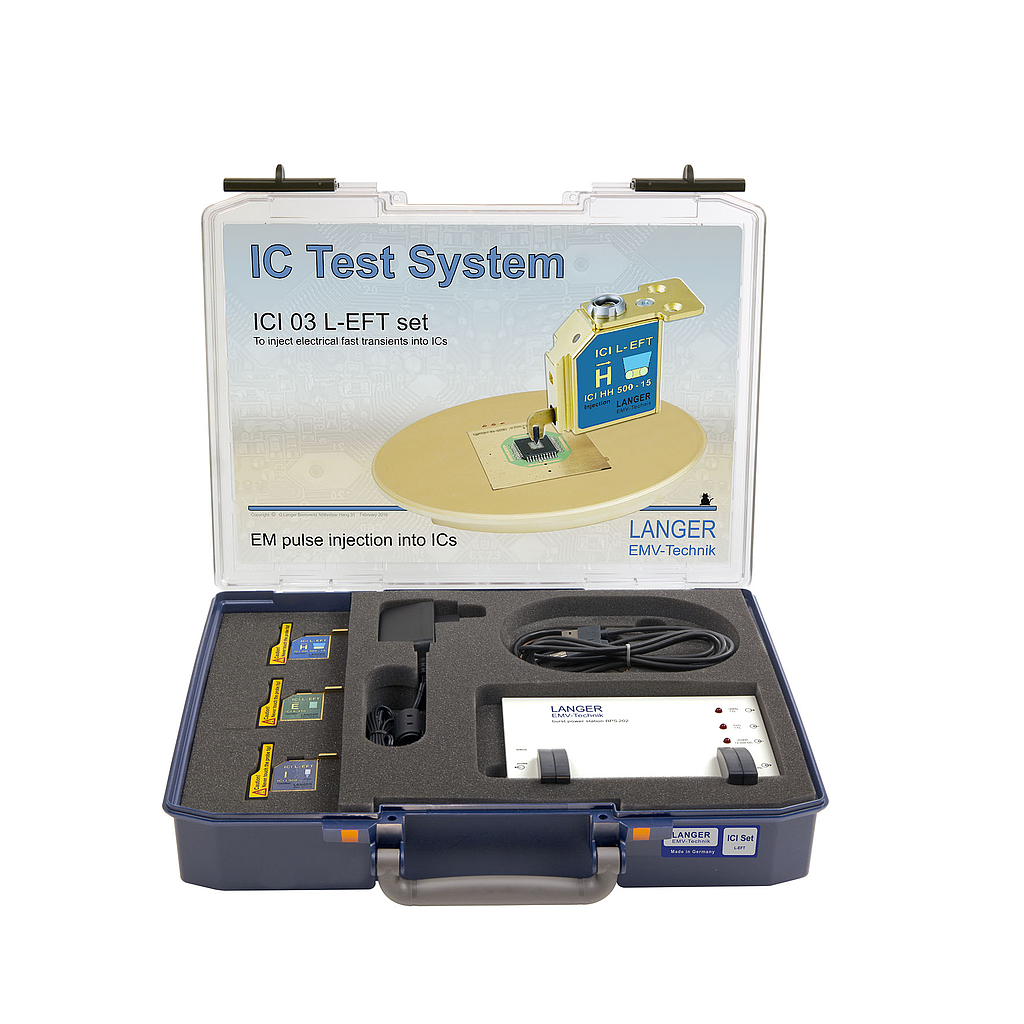

1x ICI HH500-15 L-EFT, Pulse Magnetic Field Source

1x ICI E450 L-EFT, Pulse E-Field Source

1x ICI I900 L-EFT, Pulse Current Source (FBBI)

1x BPS 202, Burst Power Station

1x BPS 202-Client, BPS 202-Client Software / USB

1x NT Ex EU, Power Supply Unit

1x ICI case, System Case

1x ICI m, ICI Set User Manual

1x ICI 01 L-EFT acc, Accessories

Short description

The ICI 03 L-EFT set consists of three different ICI sources emitting electric, magnetic field and current pulses. This allows high precision and very high resolution IC analysis and body bias injection. These sources allow side channel analysis e.g. to test security-critical circuits. Special features include very high resolution probe tips (allowing for the testing of extremely small areas) and a very low trigger to pulse jitter (allowing for the disruption of very specific points in the program sequence).
