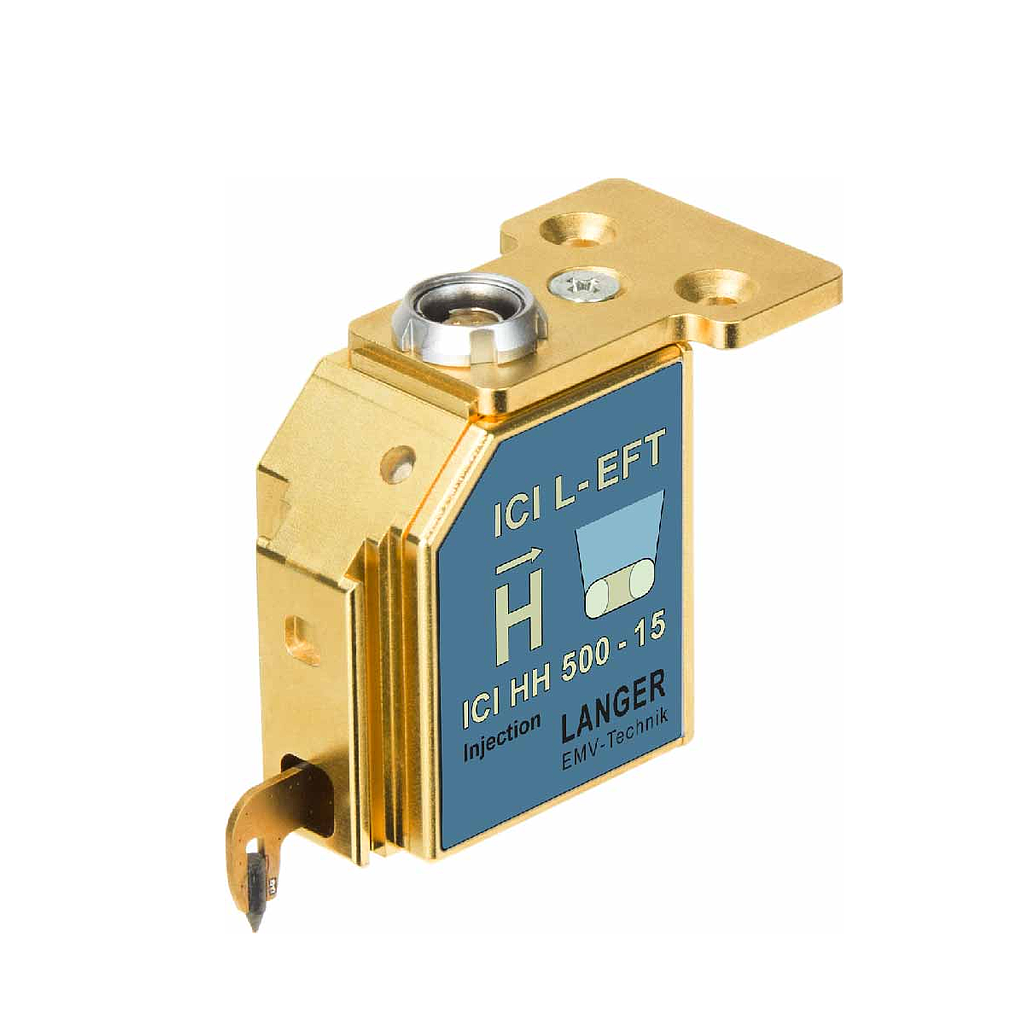

LANGER EMV-Technik ICI HH500-15 L-EFT Pulse Magnetic Field Source

Technical parameters:

Probe head dimensions: Ø 500 µm

magnetic flux density (typ.): 50 mT

Pulse parameter:

Rise time: < 2 ns

Repetition frequency: 0.1 Hz - 20 kHz

Polarity (set by software): + / - / alternating

Measuring output: 50 Ω

Trigger-pulse delay (Bypass Mode - Delay Line):

min. Trigger-pulse delay (typ.): 70 ns

max. Trigger-pulse delay (typ.): 420 ns

max. Jitter (typ.): ± 1 ns

Supply voltage: BPS 202

Weight: 70 g

Sizes (L x W x H): (26 x 43 x 53) mm

Short description

The ICI HH500-15 L-EFT pulse magnetic field source couples fast transient pulses into a test IC (open die). This allows for side channel analysis or testing the immunity of individual areas of the IC.
