LANGER EMV-Technik EMC-Basic 1 set Demonstration Boards Mini Burst Field Generators

Scope of delivery

1x SF 11, Demo Board Immunity B-field

1x SF 21, Demo Board Immunity E-field

1x P11, Mini Burst Field Generator (B)

1x P21, Mini Burst Field Generator (E)

1x NT FRI EU, Power Supply Unit

1x LK 25 cm rt, Lab Cable 25 cm, red

1x LK 25 cm bl, Lab Cable 25 cm, blue

1x A4 case, System Case

Short description

The SF 11 and SF 21 demonstration boards are assemblies for demonstrating immunity phenomena.

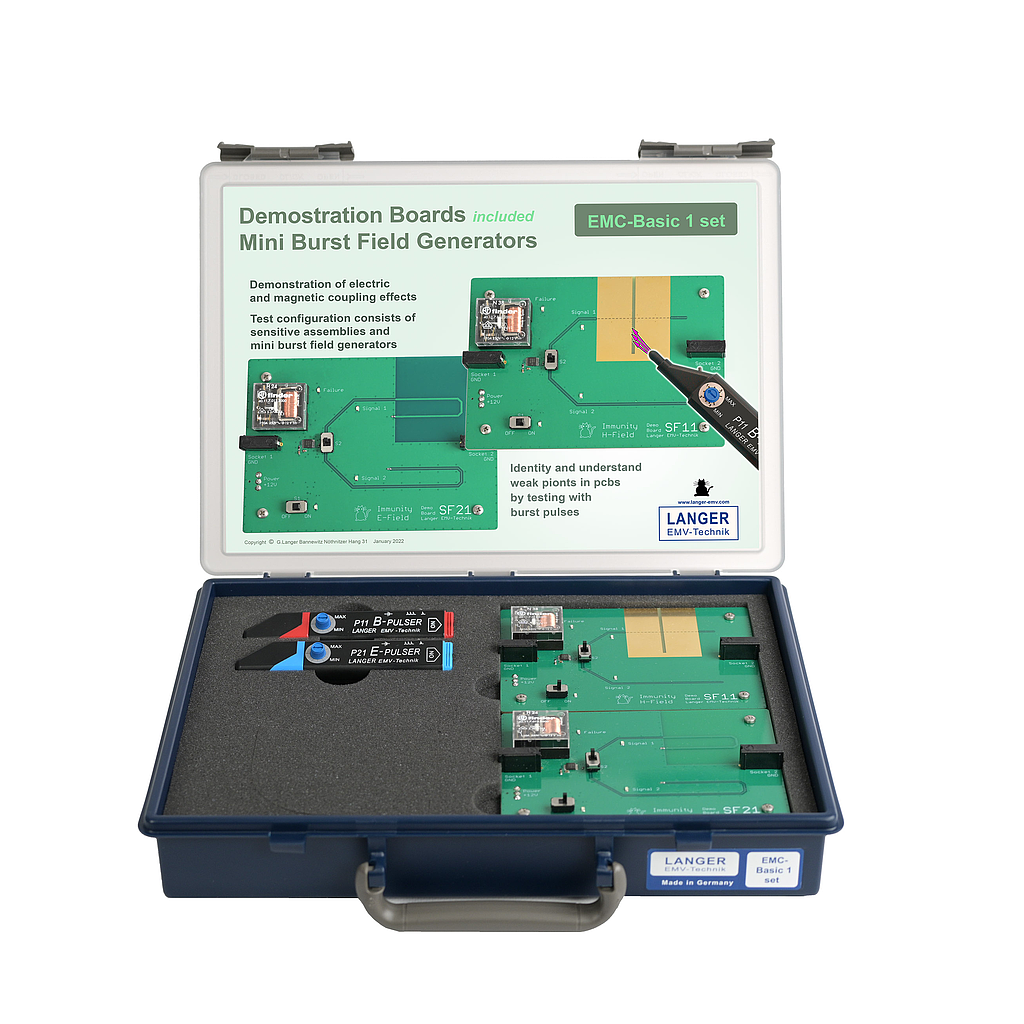

The boards are developed for demonstrations with ESD and burst generators of all manufacturers. With these demonstration boards, magnetic (SF 11) and electric (SF 21) coupling mechanisms of immunity can be clearly illustrated on one board each with the corresponding mini burst field generators (B-field: P11 pulser and E-field: P21 pulser).
