LANGER EMV-Technik PT4 set EFT Generator Set

Technical parameters

PT4 Burst Transformer

Max. burst voltage:4.5 kV

Transformation ratio: 1:1

Dielectric strength of outputs: 500 V / DC, AC 50 Hz

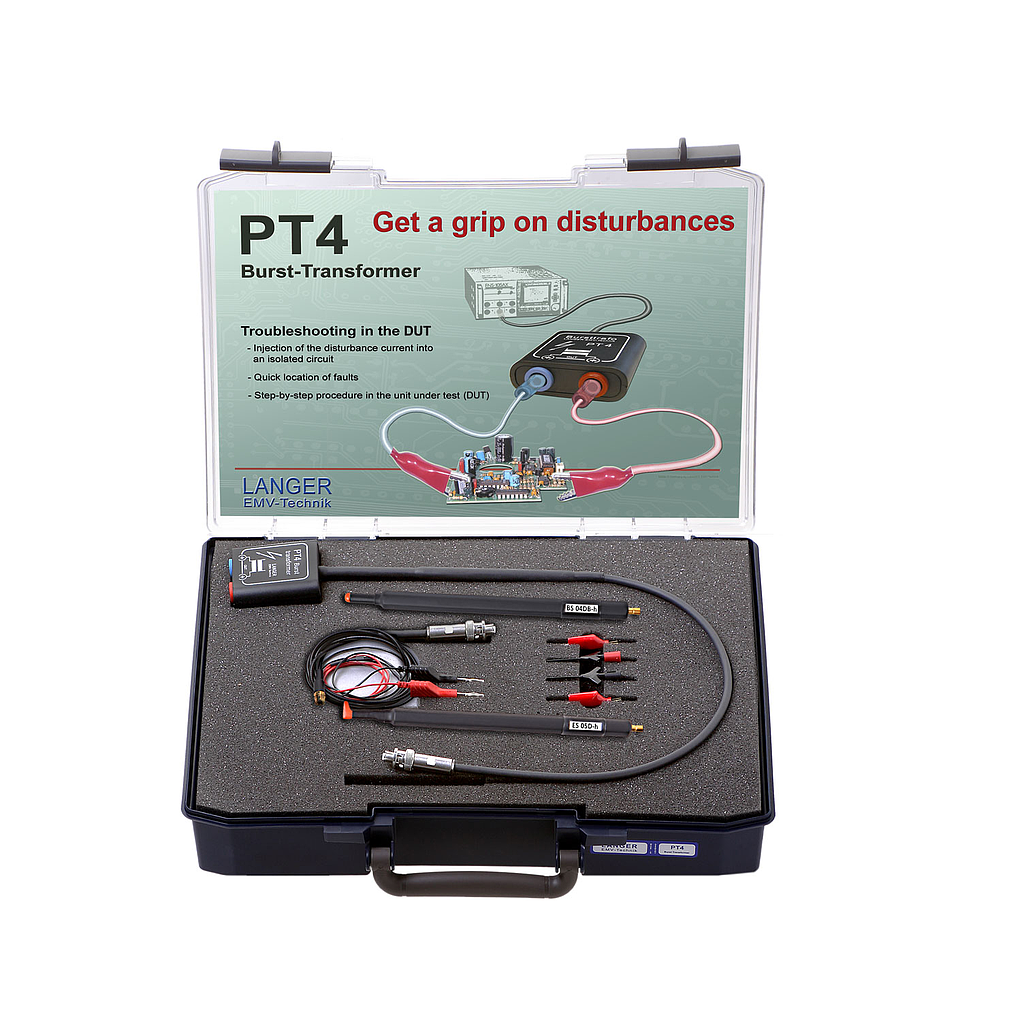

Scope of delivery

1x PT4, Burst Transformer

1x BS 04DB-h, Magnetic Field Source

1x ES 05D-h, E-Field Source

1x HV SHV-SMB 1 m, High-Voltage Cable, SHV SMB

1x PT4 acc, Accessories

1x PT4 case, System Case

1x PT4 m, PT4 Set User Manual

Short description

The PT4 set is used to analyze immunity of assemblies and devices efficiently. The PT4 burst transformer converts the pulses of the EFT/burst generator into potential free burst pulses. These are injected into individual sections of the device under test, enabling the developer to locate its susceptible areas.

The set includes a magnetic and an electric field source which are also supplied by the EFT/burst generator. The field, which emerges from the head of the field source, is used to scan the surface of the device under test. This allows the weak spots to be located with precision and assigned to the fault patterns that occur in compliance tests.

The burst transformer and the connecting cable come with either an SHV plug (HV SHV-SMB 1 m) or a Fischer plug (HV FI-SMB 1 m). Please select the desired connector/plug when ordering.

Measurements taken with an oscilloscope during interfence are possible because the pulses from the burst generator are galvanically isolated. This allows for a significant reduction in faulty measurements despite possible interference.
