LANGER EMV-Technik P12t set Mini Burst Field Generator (B, Trigger)

Technical parameters

External trigger input: SMB, male, jack; 5 V TTL

Generated magnetic flux density: ca. 1 mT

Pulse parameter

Frequency: single ... 10 kHz

Trigger-pulse delay: 3 µs

Supply voltage: 6.5 V ... 15 V

Scope of delivery

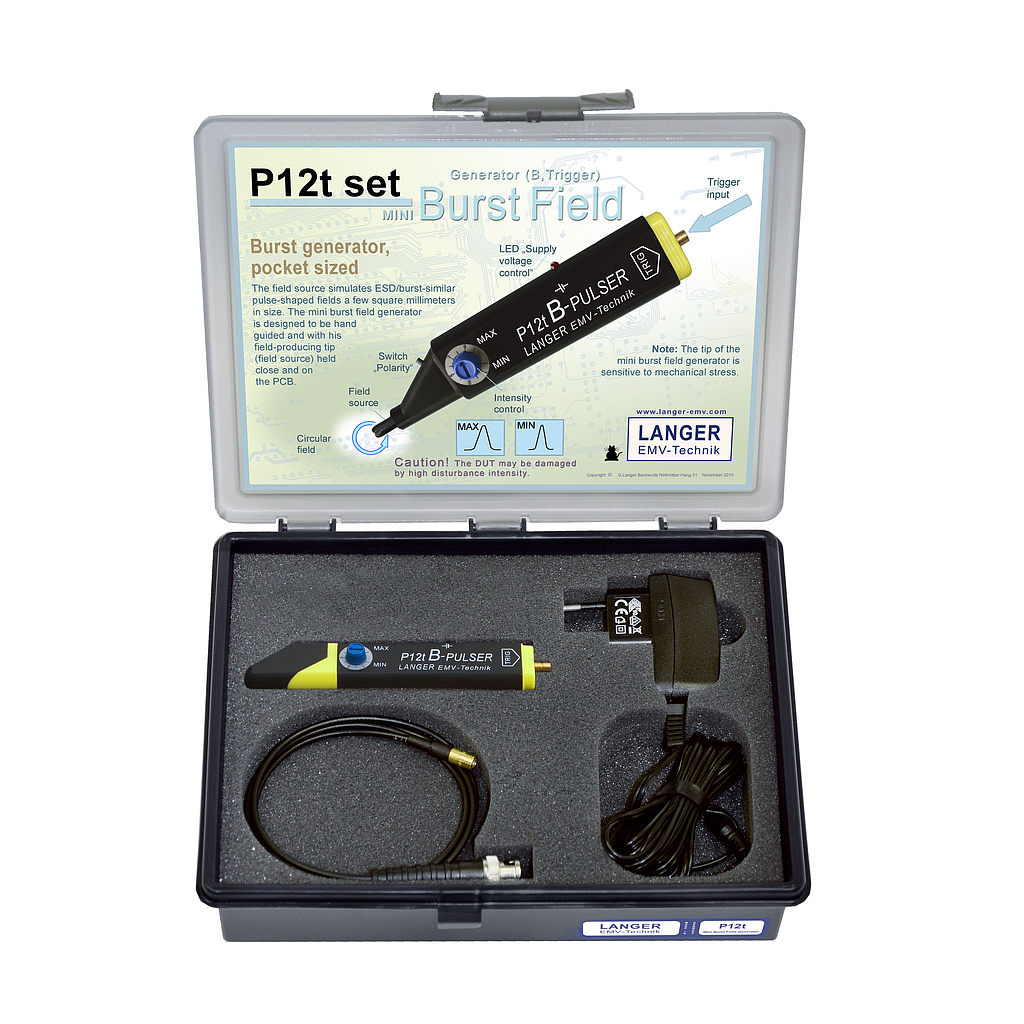

1x P12t, Mini Burst Field Generator (B, Trigger)

1x SMB-BNC 1 m, SMB-BNC Measurement Cable

1x NT FRI EU, Power Supply Unit

1x P12t case, System Case

1x P12t m, P12t Set User Manual

Short description

During the development phase the P12t mini burst field generator can be used to detect weak spots on assemblies. Fast transient magnetic field flows from the tip that follows the principle of a coupling clamp. The mini burst field generator has a TLL trigger input. Signals from out of the device under test or an external control logic can be used to synchronize the magnetic disturbance field. This allows for a precise noise immumnity analysis of complex circuits during certain operating conditions.
