LANGER EMV-Technik P11t set Mini Burst Field Generator (B, Trigger)

Technical parameters

External trigger input: SMB, male, jack; 5 V TTL

Generated magnetic flux density: ca. 1 mT

Pulse parameter

Frequency: single ... 10 kHz

Trigger-pulse delay: 3 µs

Supply voltage: 6.5 V ... 15 V

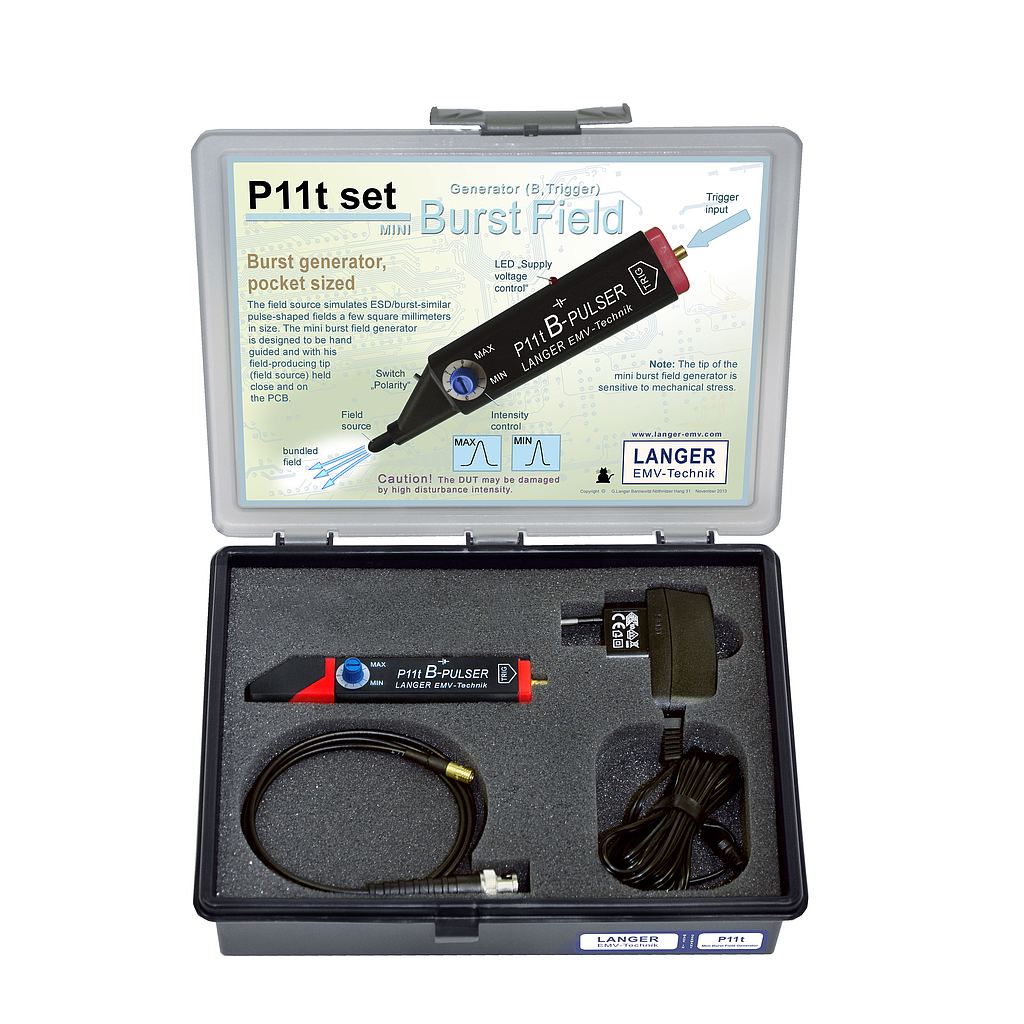

Scope of delivery

1x P11t, Mini Burst Field Generator (B, Trigger)

1x SMB-BNC 1 m, SMB-BNC Measurement Cable

1x NT FRI EU, Power Supply Unit

1x P11t case, System Case

1x P11t m, P11t Set User Manual

Short description

The P11t mini burst field generator is a development accompanying tool for interference immunity analysis. The fast transient magnetic fields, which emerge out of its tip, are used for detecting weak spots on the assemblies. The mini burst field generator has a TTL trigger input. Signals from the device under test or an external control logic can be used for synchronizing magnetic field interferences. This allows for a precise interference immunity analysis of complex circuits during certain operating conditions.
