LANGER EMV-Technik OSE 150-2 set Optical Fiber Probe 2-Channel, 50 Mbps

Technical parameters

OE 150 Optical Receiver

Transmission range: DC ... 50 Mbps

Optical fibre connector: Ø 2.2 mm

Supply voltage: 12 V / 100 mA

Optical fibre length: 1 m - 20 m

Connector - output: BNC-Stecker, 5 V HCMOS

S25 Optical Sensor

Transmission range: DC ... 50 Mbps

Optical fibre connector: Ø 2.2 mm

Supply voltage: 3 V ... 5 V

Current input: 30 mA

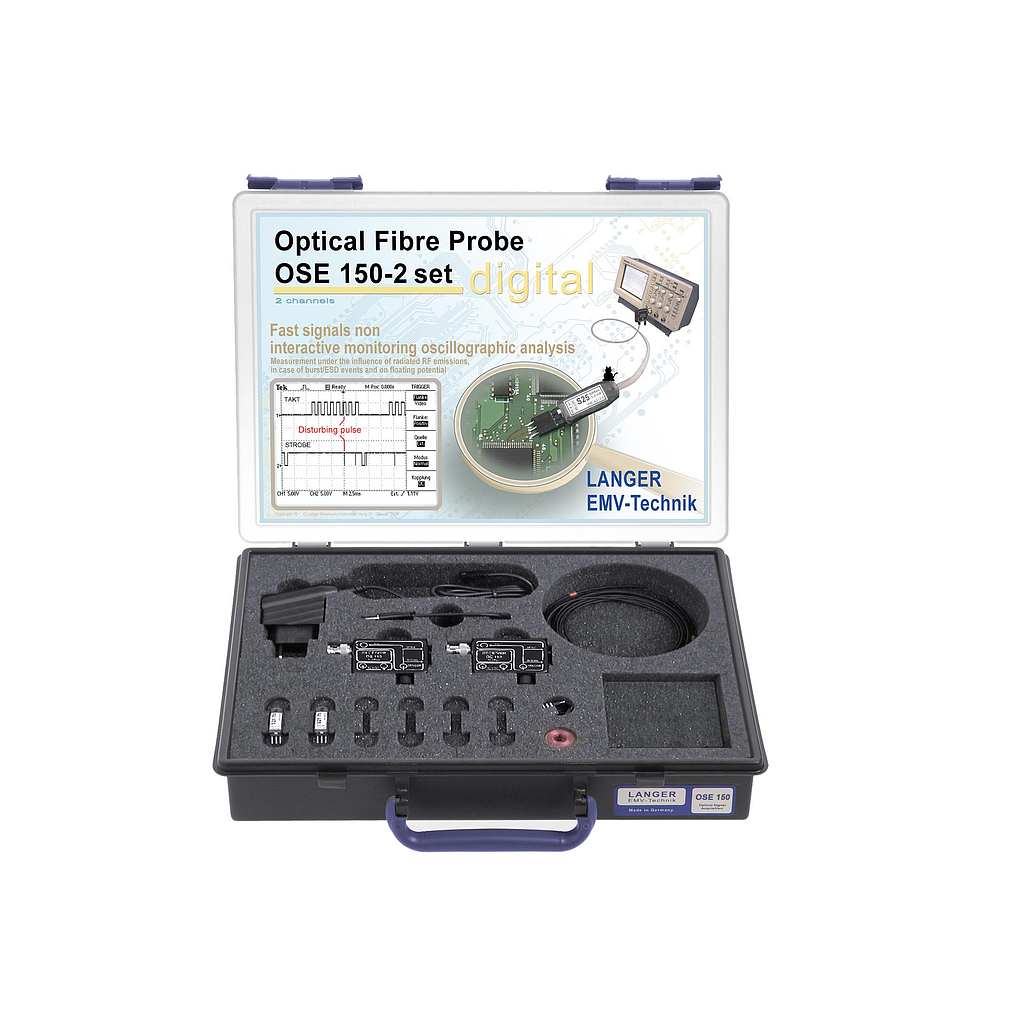

Scope of delivery

1x OE 150, Optical Receiver

1x S25, Optical Sensor (50 Mbps)

1x LWL Ø 2.2 mm 6m, Optical Fiber Single 6m

1x NT FRI EU, Power Supply Unit

1x OSE 150-2 acc, Accessories

1x OSE 150-2 case, System Case

1x Digital m, OSE User Manual

Short description

With the OSE 150-2 set it is possible to potentially free oscilloscograph digital signals under EFT/burst interference. Disturbed signals from the device under test can be easily detected.

The set consists of two single sensors which are used to detect two digital signals within the device under test. It is connected via two fiber optical cables and two receivers to the oscilloscope. Inside the device under test a sensor transforms measured logical signals into light signals.

Different types of sensors with different measuring ranges are available for the detection of logical signals in the device under test. The light signals are transmitted to the optical receiver via a fiber optical cable. The receiver transforms them into digital electric signals. These can be visualized with an oscilloscope or can be used to control other devices. The system is suitable for signal monitoring from an anechoic chamber, a shielded RF chamber, or in an EMC test lab. Hard- and software can be EMC-optimized.
