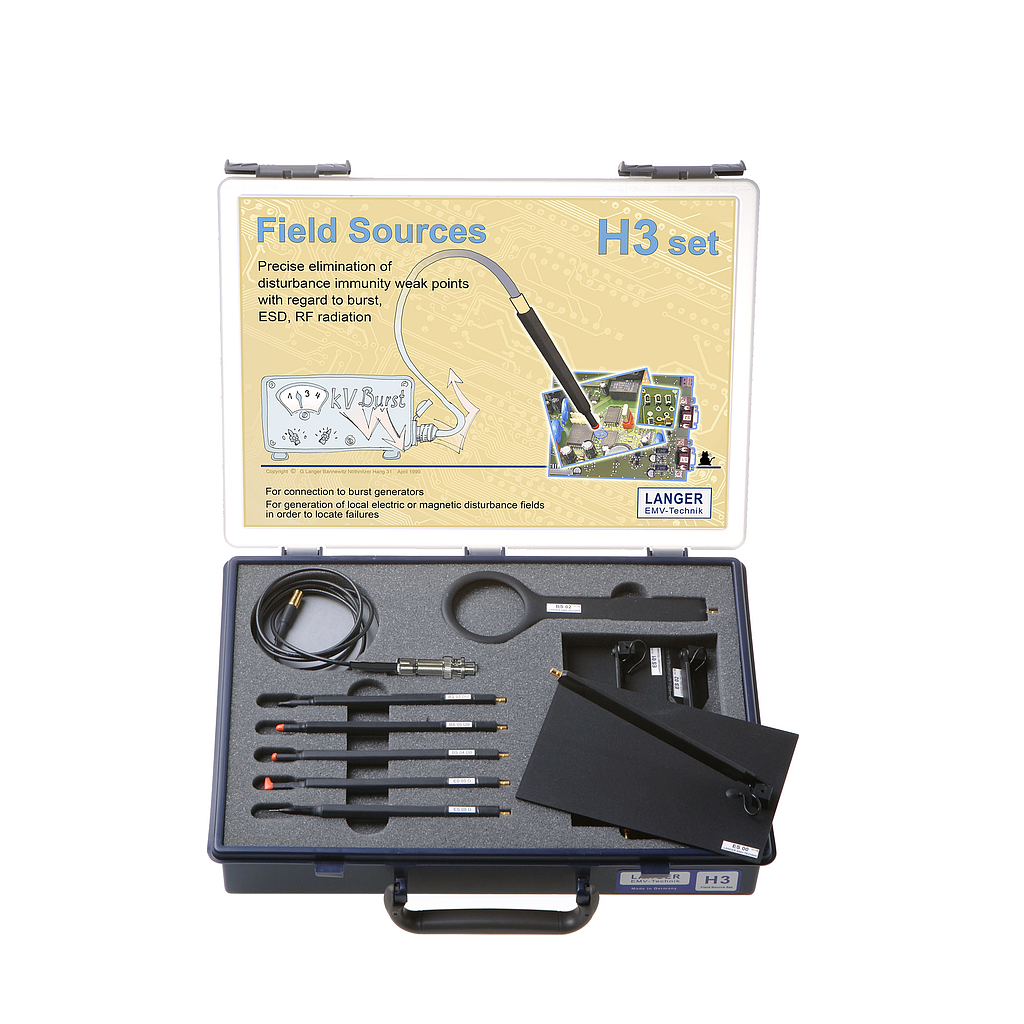

LANGER EMV-Technik H3 set Field Sources

Scope of delivery

1x BS 02-h, Magnetic Field Source

1x BS 04DB-h, Magnetic Field Source

1x BS 05DB-h, Magnetic Field Source

1x BS 05DU-h, Magnetic Field Source

1x ES 00-h, E-Field Source

1x ES 01-h, E-Field Source

1x ES 02-h, E-Field Source

1x ES 05D-h, E-Field Source

1x ES 08D-h, E-Field Source

1x HV SHV-SMB 1 m, High-Voltage Cable, SHV SMB

1x H case, System Case

1x H3 m, H3 Set User Manual

Short description

The field sources are used to analyze the immunity of assemblies and devices by coupling pulse fields (ICE 61000-4-4) into the device under test. They must be guided by hand just above the device under test. The weak spot will react to the pulse field and malfunctions will be triggered.

An EFT/burst generator powers the field sources via a high voltage cable. The field sources have a SMB-output.

The connection cable for the field sources is available with a SHV connector (HV SHV-SMB 1 m) or with a Fischer connector (HV FI-SMB 1 m; Fischer connector S103A023). Please specify when ordering.

Different types of field source tips are offered for various measuring tasks. The tips allow for localization of the weak spots accurate to the millimeter and for detecting critical connections on the defined disturbing path, such as components, wires, or IC pins.
