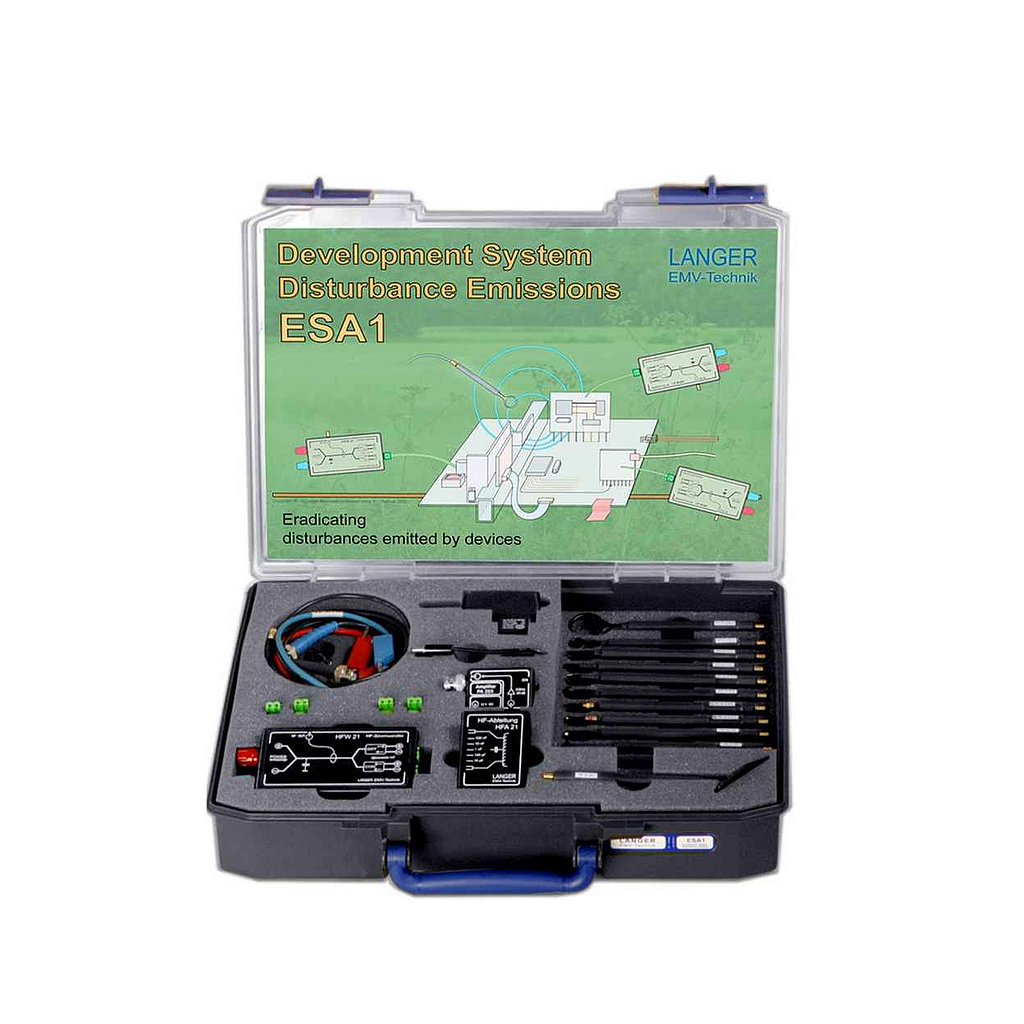

LANGER EMV-Technik ESA1 set Emission Development System

Technical parameters

HFW 21 RF Current Transformer

Frequency range: 100 kHz - 1 GHz

Continuous power rating

Current: 10 A

Dielectric strength: 50 V

Sizes (L x W x H): (135 x 32 x 28) mm

HFA 21 RF Bypass

Capacitances: 10 pF ... 100 nF

Dielectric strength: 50 V

Shielding tent (900x500x400 mm)

Attenuated shielding: 45 dB - 50 dB / 30 MHz - 1GHz

Sizes (L x W x H): (900 x 500 x 400) mm

Weight: 12 kg

Near Field Probes

Frequency range: 30 MHz - 3 GHz

CS-ESA software

Operating system: Windows XP/Vista/7 (latest service packs)

PA 203 preamplifier

Frequency range: 100 kHz - 3 GHz

Amplification: 20 dB

Supply voltage: 12 V DC

Current input: 50 mA

Max. input power: +13 dBm

Scope of delivery

1x CS-ESA set, ChipScan-ESA Software / USB

1x Dongle, Licence Dongle

1x HFW 21, RF Current Transformer

1x HFA 21, RF Bypass

1x Z23-1 set, Shielding Tent (900 x 500x 400) mm

1x PA 203 BNC, Preamplifier 100 kHz up to 3 GHz

1x RF-B 0.3-3, H-Field Probe mini 30 MHz up to 3 GHz

1x RF-B 3-2, H-Field Probe 30 MHz up to 3 GHz

1x RF-E 02, E-Field Probe 30 MHz up to 1.5 GHz

1x RF-E 05, E-Field Probe 30 MHz up to 3 GHz

1x RF-E 10, E-Field Probe 30 MHz up to 3 GHz

1x RF-R 0.3-3, H-Field Probe mini 30 MHz up to 3 GHz

1x RF-R 3-2, H-Field Probe 30 MHz up to 3 GHz

1x RF-R 50-1, H-Field Probe 30 MHz up to 3 GHz

1x RF-R 400-1, H-Field Probe 30 MHz up to 3 GHz

1x RF-U 2.5-2, H-Field Probe 30 MHz up to 3 GHz

1x RF-U 5-2, H-Field Probe 30 MHz up to 3 GHz

1x ESA1 acc, Accessories

1x ESA1 case, System case

1x ESA1 m, User Manual

Short description

The ESA1 is a system of EMC tools for measuring the interference of assemblies and devices. The CS-ESA software allows the developer to quickly and comprehensively suppress interference affecting the DUT. Interference measurements taken during the development stage with ESA1 are proportional to the results from far-field measurements or from measurements with artificial networks. With the ESA1 tools disturbance sources can be localized, effects can be detected, and EMC measures individually determined. The effects of improvements implemented by ESA1 are proportional to the results from far-field measurements. ESA1 is designed for use at the developer’s working place.
