LANGER EMV-Technik LIN 100 set Bus System

Technical parameters

LIN 100 Optical Fibre Probe

Optical fibre connector: 2 x Ø 2.2 mm

Radiated immunity: > 200 V/m

Supply voltage (Master): 8 - 15 V (Master)

Supply voltage (Slave): 8 - 30 V (Slave)

Current input: max. 45 mA

Max. optical fibre length: 20m

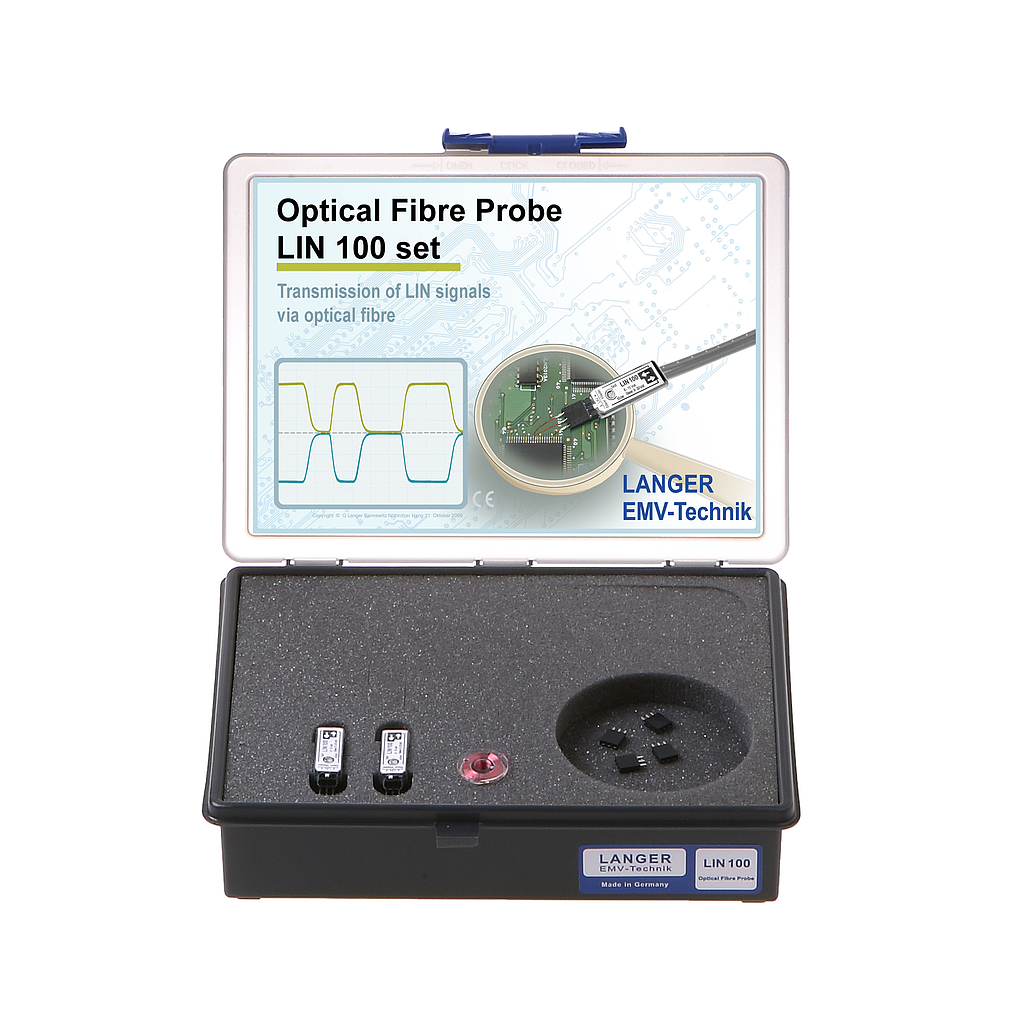

Scope of delivery

2x LIN 100, Optical Fiber Probe

1x LWL double 10 m, Optical Fiber, Double 10 m

1x LIN 100 acc, Accessories

1x A5 case, System case

1x LIN 100 m, LIN 100 Set User Manual

Short description

The LIN 100 set allows for a bidirectional, potential-free transmission of LIN signals via optical fiber cables during EMC tests or when there are great potential differences (high voltage). The set consists of 2 small LIN probes.
