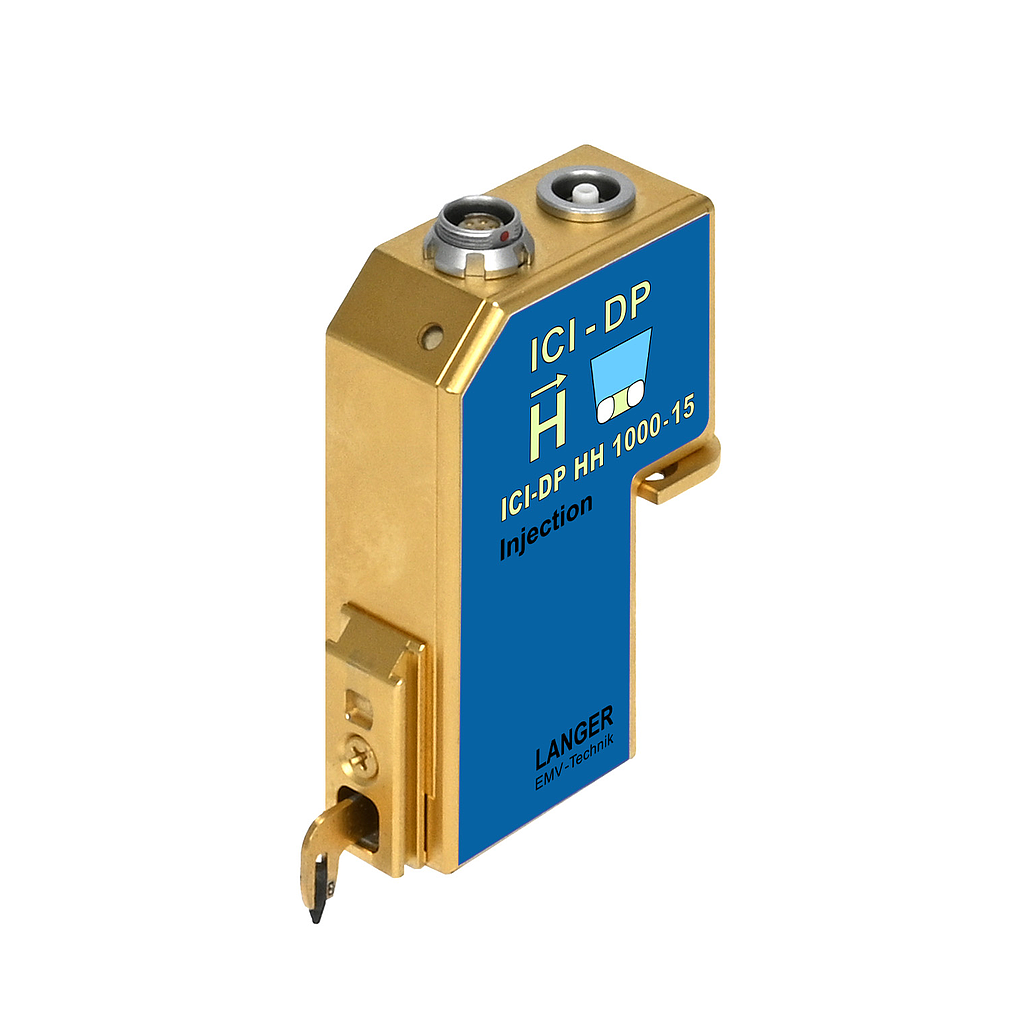

LANGER EMV-Technik ICI-DP HH1000-15 Double Pulse Magnetic Field Source (1000 μm)

Probe head dimensions:: Ø 1000 µm

Pulse parameter:

Max. Pulse voltage: 1000 V

Rise time: 2 ns

Max. current: 16 A

Pulse width: 10 ns

Min. double pulse sequence time: 25 ns

Repetition frequency: 0.1 Hz - 15 kHz (single pulse, < 500 V);  0.1 Hz - 7.5 kHz (double pulse, < 500 V)

Polarity (set by software): + / - ( no polarity change within a double pulse)

Min. trigger pulse delay: 35 ns

Additional trigger pulse delay (Delay-Line): Controlled by BPS 204 supply

Supply voltage: BPS 204

Weight: 190 g

Sizes (L x W x H): (26 x 54 x 71) mm
