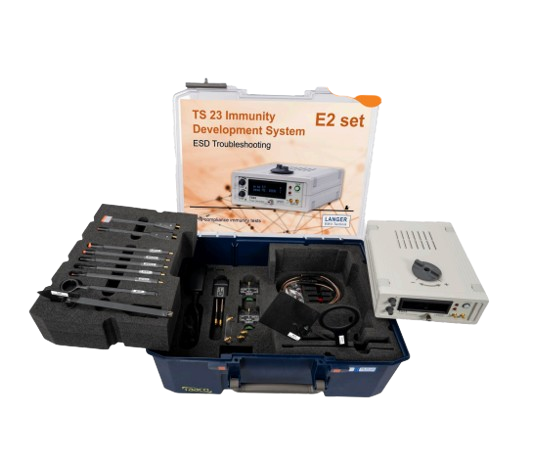

LANGER EMV-Technik E2 set TS 23 Immunity Development System

Rise time 1.5 ns

Pulse voltage adjustable from 0.01 kV – 2.2 kV

Polarity adjustable +/-

Pulse repetition frequency from 1 Hz – 1.5 kHz

Operating modes: Continuous. Ramp. Pulse groups. externally triggered

Supply Voltage 24 V / 1A DC

Size: 157 x 208 x 76 mm

Scope of delivery:

Pulse Generator: TS 23: 1

Ground Plate: GP 10: 1

Magnetic Base Adapter: MA 33: 2

Differential Injector: DE2; DE6: 6

Diff-to-Single-Ended Adapter: DEA: 1

Magnetic Field Sources: BS 02H; BS 03-d; BS 04DB-d; BS 04DB-h2; BS 05DU-h2: 5

E-Field Sources: ES 01; ES 02. ES 05D-h; ES 08D-h. ES 10D-h: 5

Magnetic Field Probe : MS 101: 1

Optical Sensor: S21: 1

Optical Fiber Cable Ø 2.2 mm: 1

Accessories: Power Supply. Generator cables etc.
