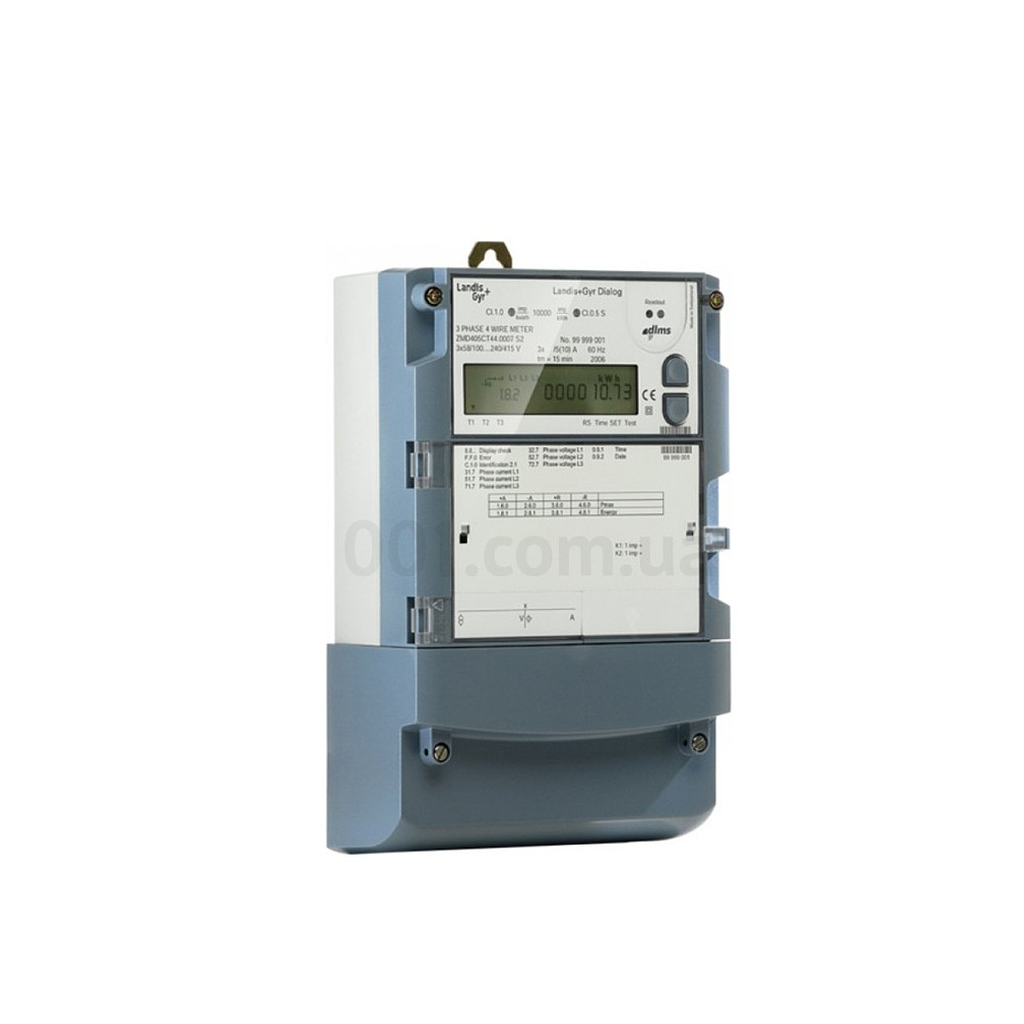

Landis+Gyr ZMD405CR44.00007.c2 Three-Phase Electronic Meter (58/100…240/415 V, 5(10) A, RS485)

Voltage: 58/100…240/415V

Current: 5(10)A

Actual measurement accuracy class: 0.5s

Reaction measurement accuracy class: 1

RS485 communication port

Measurement capability: Import/Export kWh; 4Q kVArh; kVAh

Displayed and monitored parameters: V, I, PF, W, VAr, VA, etc.

Frequency: 50 Hz

Time-of-use (TOU) registers with flexible tariff structure

Load profile registers with programmable integration period (1–60) minutes

Dot-matrix display with two rows

Instantaneous value measurement

Two module slots available for expansion functions

Wide viewing angle
