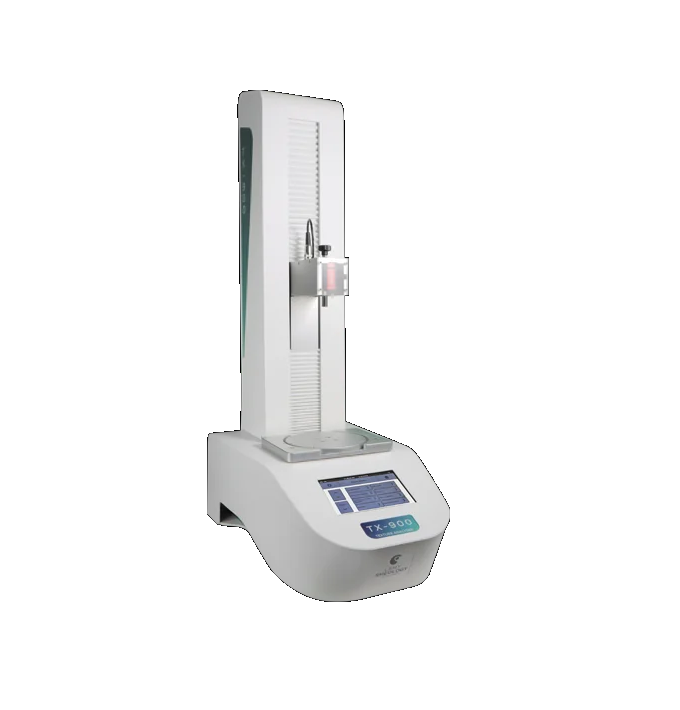

Lamy Rheology TX-900 Texture Analyzerte (100N)

Type of instrument : Texture Analyzer operating in Compression and Traction with 7'' Touch screen

Sensors : 100 N (10kg), resolution 0.001 N (0.1 g)

Speed range : From 0.1 to 10 mm/s +/-0.2 %

Motion : Height: 400 mm / Resolution: 0.1 mm

Temperature : Equipped with a PT100 sensor which indicates temperatures between -50°C to +300°C

Accuracy : +/- 0.5 % of the full scale

Display : Strength – Speed – Distance – Temperature - Time – Measuring probe – Load sensor - Date/hour - Choice of force units: gram or Newton

Compatible accessories :

Probes

Fixtures

Barcode reader with stand and cable

Zebra printer

Touch screen protector

Calibration Kit: 10-20N (Ref.150060) ; 50-100-250N (Ref.150070) ; 500N (Ref.150080).

RheoTex software

Load sensor: 100N

Security and confidentiality : An «operator» function allows you to enter a username for your instrument. This user must then be identified using a 4-digit code. There is also a protected mode that locks your measurement conditions.

Languages : French/English/Russian/Turkish/German/Italian/Portuguese/Korean/Ukrainian

Compatible measuring systems : All probes and cell

Supply voltage : 90-240 VAC 50/60 Hz

PC connections : RS232 Port and USB

Printer connection : USB Host Port - Compatible PCL/5

What benefits are there for you? : Integrated adjustable turntable: diam. 160 mm. Table for attaching inserts: 120 x 220 mm. Available Operating Modes: Compression – Relaxation –Traction – TPA Cycle – Penetrometry and relative

compression mode also. Large selection of probes available and custom probes can be made with choice of material, shape

and size according to your criteria. The TX-900 has a large 7’’ colour touch screen which allows comfortable use and optimal viewing of measurements. Storage of your measuring methods. Data can be backed up and exported using a USB key. External control thanks to the optional software.

Dimensions and weight : D610 x W340 x H970 mm Weight: 27 kg

What's included :

1 Interchangeable force sensor (depending on model).

1 PT 100 temperature probe (-50°C to +300°C).

1 Turntable goes up and down.

1 Instructions for use.

1 Calibration certificate and 1 verification report.
