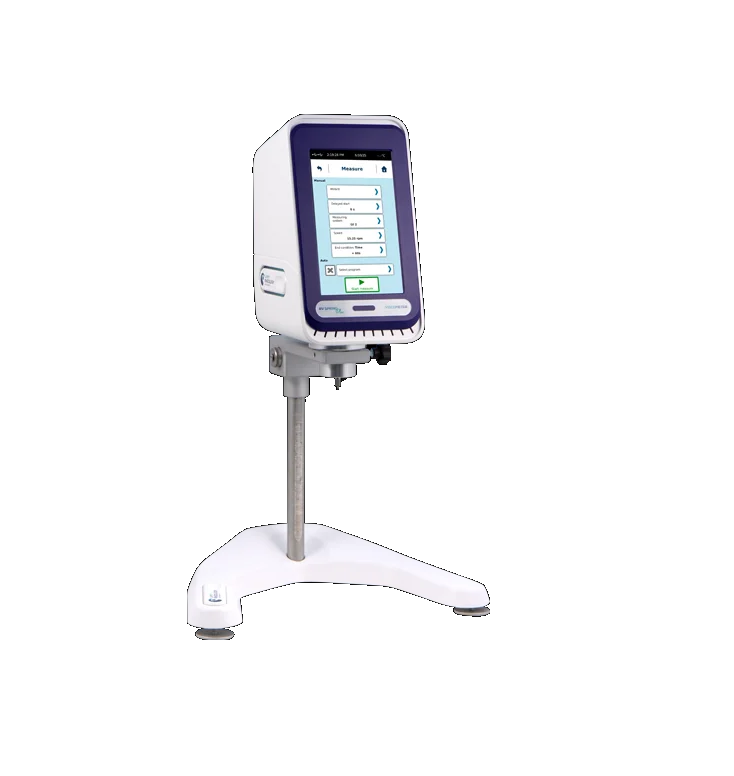

Lamy Rheology RV SPRING Spring Viscometer (200 ~ 40MmPa.s)

Type of instrument : Rotating viscometer with spring and 7' touchscreen

Viscosity range (mPa.s): 200 to 40M

Rotation speeds : Unlimited speed between 0.1 and 250 r/min

Torque range : 0.7187 mNm

Temperature : From -50°C to +300°C with external probe

Accuracy : +/- 1 % of the full scale

Repeatability : +/- 0.2 %

Display : Viscosity ( cP/ Poises or mPa.s/ Pa.s) Speed- Shear gradient - Torque (%- mNm)- Stress- Time- Temperature- Electronic bubble level

Compatible accessories :

HELIPRO SPRING

Display for spindles

Protects touch screen

Verification oils

SMALL VOLUME KIT SPRING

THERMOCELL PACKAGE SPRING

Rheotex software

Security and confidentiality : An «operator» function allows you to enter a username for you instrument. This user must then be identified using a 4-digit code. There is also a protected mode that locks your measurement conditions.

Languages : French/English/Russian/Spanish/Turkish/German/Italian/Korean/Portuguese/Ukrainian

Compatible measuring systems :

MS LV Spring, MS RV Spring, MS SV Spring, MS ULA Spring.

Compatible temperature control : EVA LR, EVA MS DIN, RT-1 PLUS.*Only with adaptation kit Ref. (SP01KIT).

Supply voltage :  90-240 VAC 50/60 Hz

PC connections : RS232 and Ethernet USB port

Printer connection : USB HOST Port- Compatible PCL/5

Dimensions and weight :

Head: L138 x H243 x P235 mm

Support: L340 x I285 x H70 mm

Stainless steel rod: Length 500 mm

Weight: 6.1 Kg

What's included :

6 Spindles RV-2 to RV-7

1 GuardLeg RV SPRING

1 Rack stand

1 Instructions for use

1 Certificate of calibration

1 Verification report

1 Carrying case
