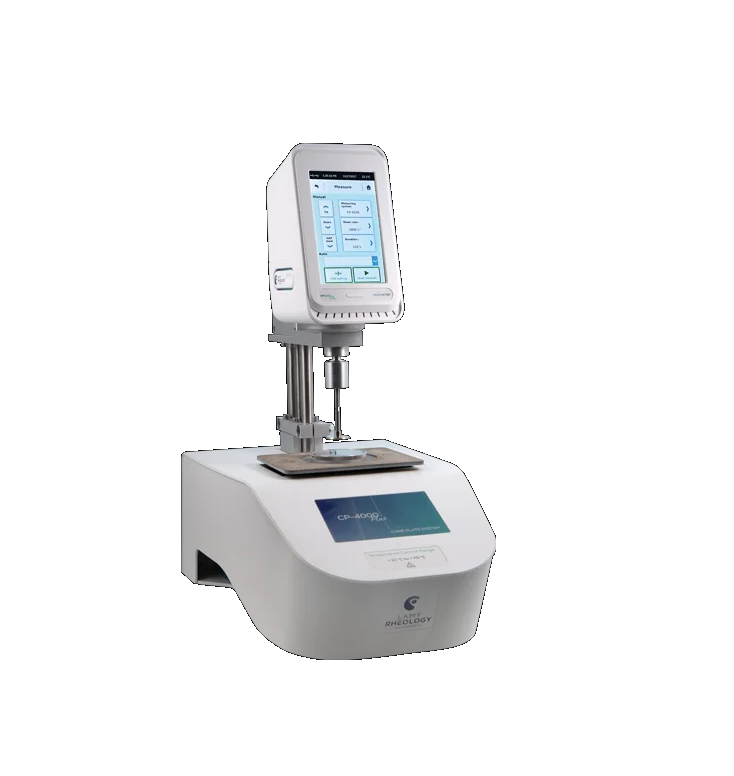

Lamy Rheology RM 200 CP-4000 PLUS Cone Plate Rheometer (1 ~ 63.6MmPa.s, -20°C ~ +100°C)

Type of instrument : Rotating springless rheometer with 7’’ Touch screen

Viscosity range (mPa.s): 1 to 63.6M (according to spindles MS CP)

Rheometer Liquid Peltier** (-20°C To +100°C)

Rotation speeds : Unlimited number of speeds between 0.3 and 1500 rpm

Torque range : From 0.05 to 30 mNm

Temperature : Equipped with a PT100 sensor which indicates temperature between – 50°C to + 300 °C

Accuracy : +/- 1 % of the full scale

Repeatability : +/- 0.2 %

Display : Viscosity (cP/Poises or mPa.s / Pa.s)-Speed – Shear rate – Torque (%-mNm) - Shear stress - Time – Temperature

Compatible accessories :

Barcode reader with stand and cable

Touch screen protector

Zebra printer

Viscosity standards oil

RheoTex software

Protection cover (Ref. 121019).

Security and confidentiality : An “operator” function allows you to enter a username for your instrument. This user must then be identified using a 4-digit code. There is also a protected mode that locks your measurement Conditions.

Languages :

French/English/Russian/Spanish/Turkish/German/Italian/Portuguese/Korean/Ukrainian

Compatible measuring systems : MS CP, MS PP, MS DIN (only for models N240256 and N240257).

Supply voltage : 90-240 VAC 50/60 Hz

PC connections : Port RS232, USB and Ethernet

Printer connection : USB Host Port - Compatible PCL/5

What benefits are there for you? : Save your flow curves and calculate your rheological parameters directly without computer (Plastic viscosity, flow limit, Thixotropy, Regression models according to Newton, Bingham, Casson and Ostwald) . Choose your attachment system tailored to your product constraints.

Dimensions and weight : D610 x H700 x W340 mm

Weight: 22 kg

What's included :

1 Temperature control unit.

1 Instructions for use.

1 Calibration certificate and 1 verification report.
