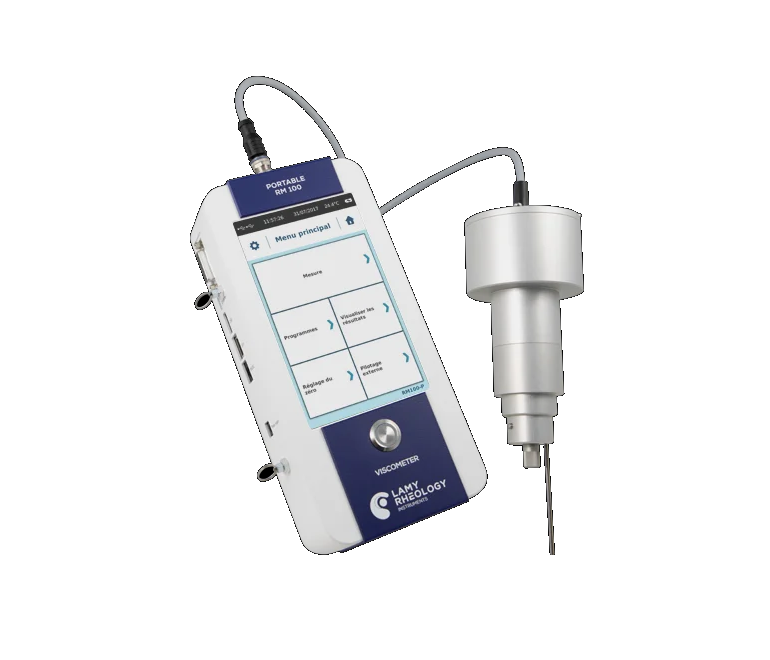

Lamy Rheology RM 100 Viscometer (200 ~ 240M mPa.s)

Type of instrument : Rotating springless viscometer with 7’’ Touch screen

Viscosity range (mPa.s): 200to 240M

Rotation speeds : Unlimited number of speeds between 0.3 and 1500 rpm

Torque range : From 0.05 to 30 mNm

Temperature : The Portable RM 100 has a PT100 sensor which indicates temperatures between -50 °C to + 300 °C

Accuracy : +/- 1 % of the full scale

Repeatability : +/- 0.2 %

Display : Viscosity (cP/Poises or mPa.s / Pa.s)-Speed – Shear rate – Torque (%-mNm) - Shear stress - Time – Temperature

Compatible accessories :

Standard or rack stand

HELIPRO stand

Zebra printer

Small volume package

Small volumes package

THERMOCELL package

Bayonet spindle rack

Barcode reader with stand and cable

Touch screen protector

Viscosity standards oil

RheoTex software

Security and confidentiality : An «operator» function allows you to enter a username for your instrument. This user must then be identified using a 4-digit code. There is also a protected mode that locks your measurement conditions.

Languages : French/English/Russian/Spanish/Turkish/German/Italian/Korean/Portuguese/Ukrainian

Compatible measuring systems : MS DIN, MS RV/LV, MS BV, MS VANE, MS R, MS KREBS, MS ULV, MS SV

Compatible temperature control : EVA MS-DIN PLUS, EVA MS-R PLUS, EVA LR-BV PLUS, RT-1 PLUS

Supply voltage : 90-240 VAC 50/60 Hz

PC connections : RS232 Port, USB and Ethernet

Printer connection : USB Host Port - Compatible PCL/5

What benefits are there for you? : The Portable RM 100 gives you one hour of measuring time. Save your measurement protocols directly on your viscometer. The Portable RM 100 lets you set measuring times for thixotropic products. You can connect a USB printer. External control thanks to the optional software.

Dimensions and weight : Head : Ø 90 mm; Box D60 x H260 x W120

Weight: 2 kg

What's included :

1 Integrated temperature probe.

1 Carrying case.

1 User manual.

1 Calibration and checking certificate.

1 Harness.
