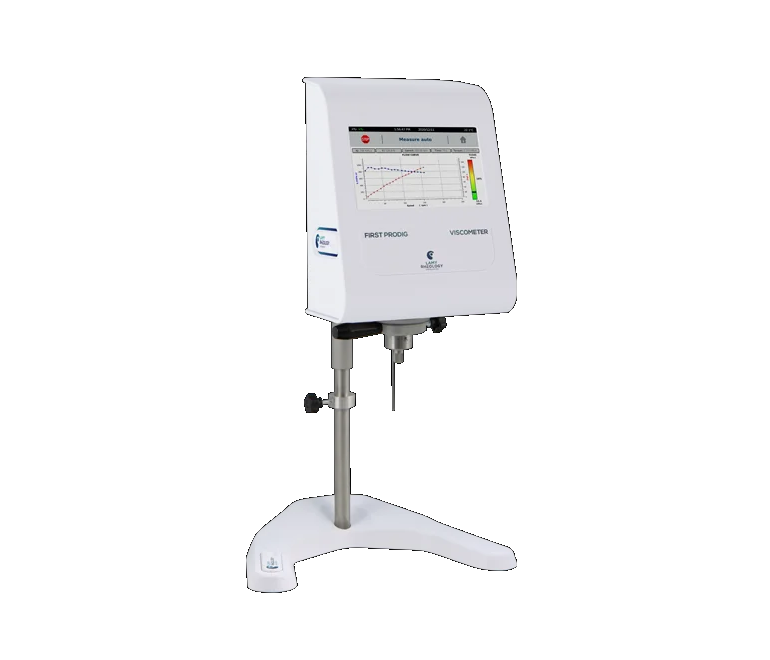

Lamy Rheology FIRST PRODIG Viscometer (15 ~ 22M mPa.s, rack stand)

Type of instrument : Rotating springless viscometer with 7’’ Touch screen

Viscosity range (mPa.s): 15 ~ 22M

With Spindles Lv-1 To Lv-4 (With Rack Stand)

Rotation speeds : Unlimited number of speeds between 0.3 and 250 rpm

Torque range : Standard Version: 0.05 to 13 mNm LR version: 0.005 to 0.8 mNm

Temperature :

Equipped with a PT100 sensor which indicates temperatures between -50°C to +300°C

Accuracy : +/- 1 % of the full scale

Repeatability : +/- 0.2 %

Display : Viscosity (cP/Poises or mPa.s / Pa.s)-Speed – Shear rate – Torque (%-mNm) - Shear stress - Time –Temperature

Compatible accessories :

Carrying case

External temperature probe -50°C to +300°C

Zebra printer

HELIPRO stand

Barcode reader with stand and cable

Bayonet spindle rack

Touch screen protector

Viscosity standards oil

Small volume package

Small volume package

THERMOCELL package

RheoTex software

GuardLeg

Security and confidentiality : An «operator» function allows you to enter a username for your instrument. This user must then be identified using a 4-digit code. There is also a protected mode that locks your measurement conditions.

Languages : French/English/Turkish/German/Russian/Italian/Korean/Portuguese/Ukrainian

Compatible measuring systems : MS RV/LV, MS BV, MS VANES, MS KREBS, MS SV, MS ULV, MS DIN

Compatible temperature control : EVA LR-BV PLUS, EVA MS-DIN PLUS, RT- 1 PLUS

Supply voltage : 90-240 VAC 50/60 Hz

PC connections : RS232 Port, USB and Ethernet

Dimensions and weight : Head: D115 x H243 x W138 mm; stand: L340 x W305 x H70 mm; Stainless steel rod: Length 500 mm

Weight: 6.1 kg

What's included :

4 Spindles LV or 6 spindles RV.

1 Integrated temperature probe.

1 Standard stand or rack stand.

1 User manual.

1 Calibration and checking certificate.
