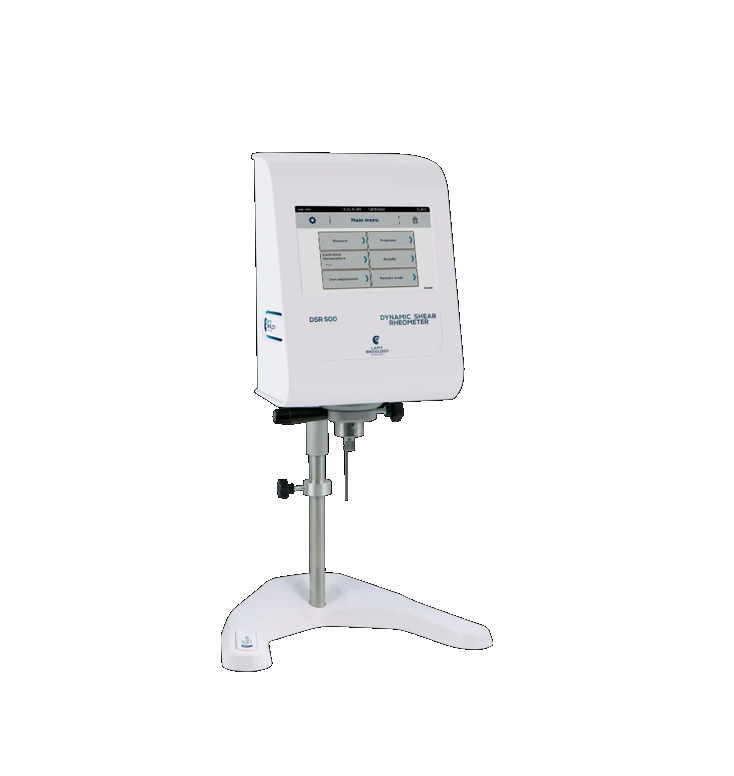

Lamy Rheology DSR 500 Rheometer (1 ~ 780M mPa.s)

Type of instrument : Rotating springless rheometer with 7’’ Touch screen

Viscosity range (mPa.s): 1 to 780M

Rotation speeds : Unlimited number of speeds between 0.3 and 1500 rpm

Torque range : From 0.05 to 30 mNm

Temperature : The DSR 500 has a PT100 sensor which indicates temperatures between -50 °C to + 300 °C

Accuracy : +/- 1 % of the full scale

Repeatability : +/- 0.2 %

Display : Viscosity (cP/Poises or mPa.s / Pa.s)-Speed – Shear rate – Torque (%-mNm) - Shear stress - Time – Temperature

Compatible accessories :

Carrying case

HELIPRO stand

Small volume package

Small volume package

THERMOCELL package

Barcode reader with stand and cable

Bayonet spindle rack

Touch screen protector

Zebra printer

Viscosity standards oil

RheoTex software

External temperature probe -50°C to +300°C

GuardLeg

Security and confidentiality : An «operator» function allows you to enter a username for your instrument. This user must then be identified using a 4-digit code. There is also a protected mode that locks your measurement conditions.

Languages : French/English/German/Turkish/Russian/Italian/Portuguese/Korean/Ukrainian

Compatible measuring systems : MS DIN, MS RV/LV, MS BV, MS VANE,MS KREBS, MS R, MS HT, MS ULV, MS SV,

Compatible temperature control : EVA MS-DIN PLUS, EVA MS-R PLUS, EVA LR-BV PLUS, RT-1 PLUS

Supply voltage : 90-240 VAC 50/60 Hz

PC connections : RS232 Port, USB and Ethernet.

Printer connection : USB Host Port - Compatible PCL/5

Dimensions and weight :

Head: D160 x H270 x W200 mm

Stand: L340 x W305 x H70 mm

Stainless steel rod: Length 500 mm

Weight: 6.1 kg

What's included :

1 Stand for DSR500.

1 User manual.

1 Calibration and checking certificate.

1 integrated temperature probe

Datasheet

Manual
