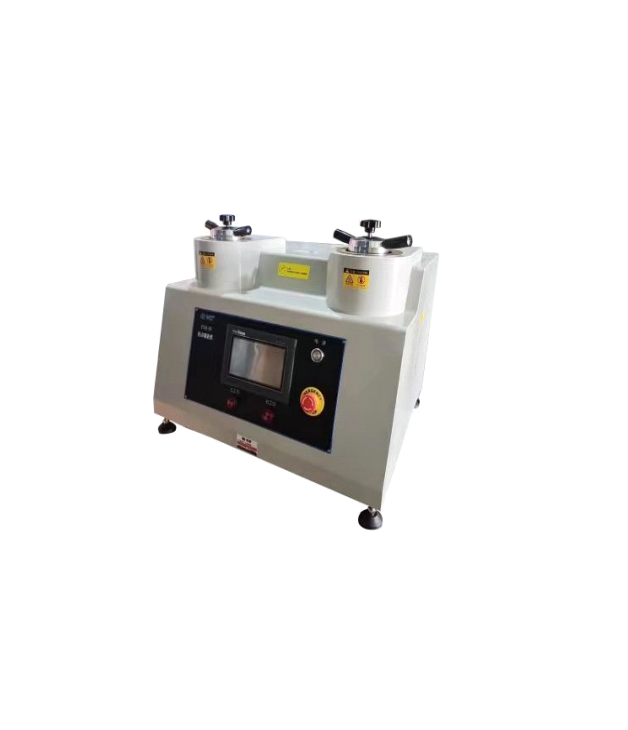

Laihua ZXQ-3 Double Head Automatic Hydraulic Metallographic Mounting Press
ManufacturerLaihua(View more products from this manufacturer)
ModelZXQ-3
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Mould Size: φ25mm, φ30mm, φ40mm, φ50mm
Max Mounting Sample thickness: 60mm
Display: Touch Screen
System pressure setting range: 0-2Mpa(Relative sample pressure range: 0~72MPa)
Temperature scope: Room temperature~180℃
Pre-heating function: Yes
Cooling method: Water cooling
Cooling speed: High-Medium-Low
Holding time range: 0~99min
Sound and light buzzer alarm: Yes
Mounting Time: Within 6 minutes
Power Supply: 220V 50HZ
Main motor power: 2800W
Packing Size: 770mm×760mm×650mm
Gross Weight: 124 KGS
