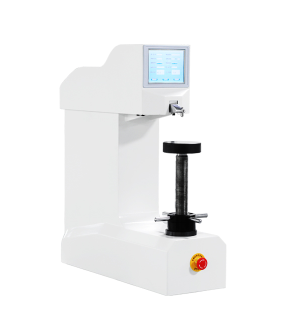

LABTT THR-150DXC Nosed Rockwell Hardness Tester

Rockwell initial test force: 10kgf(98.07N)

Rockwell total test force: 60kgf(588N) 100kgf(980N) 150kgf(1471N)

Rockwell hardness scale: HRA、HRB、HRC、HRD、HRE、HRF、HRG、HRH、HRK、 HRL、HRM、HRR、HRP、HRS、HRV

Rockwell measurement range: HRA:20-88、HRB:20-100 、HRC:20-70 、HRD:40-77 、HRE:70-100 、HRF:60-100 、HRG:30-94、HRH:80-100、HRK:40-100、HRL:100-120 HRM:85-115、 HRR:114-125

Dwell time: 0-99s

Hardness resolution: 0.1HR

Test force error: ＜1.0%

Data output: LCD display

Data storage: Data is saved in the U disk as EXCEL format

Scale conversion: Superficial Rockwell、Brinell, Vickers

Carried standard: BSEN 6508， ISO 6508， ASTM E18， GB/T230

Max. Height of sample: 300mm

The distance of indenter to the wall: 250mm

Dimension: 720×260×840mm

Weight: 80kg

Power: AC220+5%,50～60Hz
