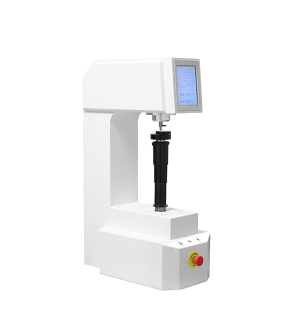

LABTT THR-150DX-Z Automatic Rockwell Hardness Tester

Initial test force: 10 KGF (98.07 N)

Main test force: 60kgf(588N) 100kgf(980N) 150kgf(1471N)

Hardness scale: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV

Rockwell test range: HRA:20-88, HRB:20-100, HRC:20-70, HRD:40-77, HRE:70-100, HRF:60-100, HRG:30-94, HRH:80-100, HRK:40-100, HRL:100-120, HRM:85-115, HRR:114-125

Meet standard: BSEN 6508, ISO 6508, ASTM E18, GB/T230

Dwell time: 0-99s

Hardness resolution: 0.1 HR

Error of test force: < 0.5%

Data output: LCD display

Data is stored: The measured values are saved on USB flash drive in Excel format

Conversion scale: Rockwell, Brinell and Vickers

Maximum permissible specimen height: 300mm

Distance between head and wall: 200mm

size: 560 * 280 * 850 mm

Weight: 80kg
