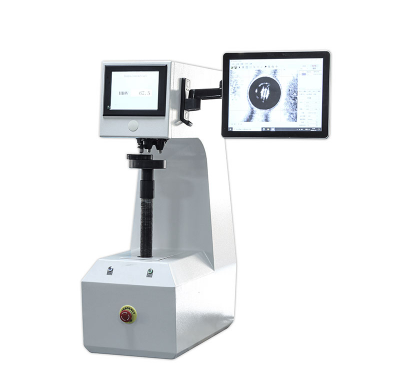

LABTT THBS-3000XP-AZF Automatic Brinell Hardness Tester

Hardness tester host parameters:

Brinell hardness scale: HBW1/31.25 HBW2.5/62.5 HBW2.5/187.5 HBW5/125 HB 162.5 HBW5/250 HB w5/750 HBW10/100 HB 1500 HBW10/3000 HBW10/500 HBW10/1000

Test force (Kgf): 31.25.5 KGF (306.45N), 62.5 KGF (612.9N), 100KGF (980.7N), 125kGF (1226N), 187.5 KGF (1839N), 250kGF (2452N), 500kGF (4903N), 750KGF (4905n), 1000kGF (7905n), 1500kGF (14710N), 3000kGF (29420N)

Carried standard: BSEN 6506, ISO 6506, ASTM E10, GB/T231

Accuracy of test force: 62.5 ~ 250kGF ≤1% 500 ~ 3000kGF ≤0.5%

Measuring device resolution: 0.1 um

Hardness resolution: 0.1 HBW

Bao load time: 0 ~ 99 s

Data output: The LCD display

Data store: The measured values are stored in EXCEL format on a usb flash disk

Maximum allowable specimen height: 350 mm

Distance from head to wall: 250 mm

size: 700 * 340 * 970 mm

Weight: 160 kg

Power: AC220± 5%, 50 ~ 60 hz

Software technical parameters:

Brinell hardness scale: HBW2.5/62.5 HBW2.5/187.5 HBW5/62.5 HBW5/250 HBW5/750 HBW10/100 HBW10/500 HBW10/1500 HBW10/3000

Carried standard: BSEN 6506, ISO 6506, ASTM E10, GB/T231

Measuring range: 15.9-650HBW (ASTM E10 Recommended Effective hardness value)

Measuring device resolution: 0.005

Accuracy of measurement: Plus or minus 0.5%

Digital imaging: 5 million industrial-grade digital cameras

Measuring Method: Manual and automatic measurement (for standard samples)

Calibration method: Standard hardness block/length scale

Support language: Chinese/English (optional)

Power supply: USB power supply
