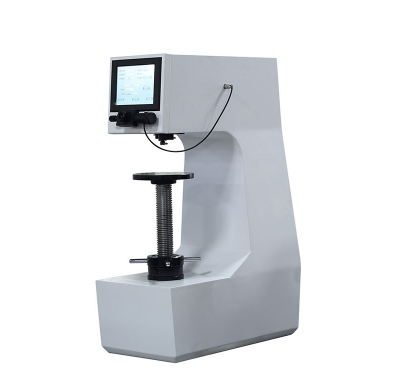

LABTT THB-3000XP-Z Automatic Brinell hardness tester

Test force (Kgf): 62.5Kgf(612.9N) 100Kgf(980.7N) 125Kgf(1226N) 187.5Kgf(1839N) 250Kgf(2452N) 500Kgf(4903N) 750Kgf(7355N) 1000Kgf(9807N) 1500Kgf(14710N) 3000Kgf(29420N)

Carried standard: BSEN 6506, ISO 6506, ASTM E10, GB/T231

Accuracy of test force: 62.5～250Kgf≤1% 500～3000Kgf≤0.5%

Measuring device resolution: 0.1 um

Indenter and lens: Automatic replacement

Hardness range: 3.18-653HBW

Hardness resolution: 0.1 HBW

Dwell time: 0 ~ 99 s

Data output: LCD display

Data store: The measured values are stored in EXCEL format on a usb flash disk

Maximum allowable specimen height: 350 mm

Distance from indenter to wall: 250 mm

Size: 700 * 340 * 970 mm

Weight: 160 kg

Power supply: AC220± 5%, 50 ~ 60 hz
