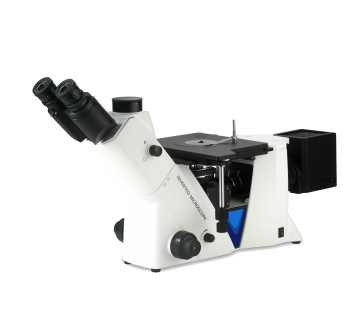

LABTT M-45X Inverted Metallographic Microscope

Eyepiece: Flat field eyepiece with high eye point and large field of view PL10X/22mm

Optical system: OTICS Infinite chromatic aberration correction optical system

Magnification: The standard configuration is 50-500 times, and the magnification can be 1000 times after 100 times objective lens is selected

Objective lense:

- Infinite working distance flat field achromatic metallographic objective plan5x / 0.13 working distance 24.23mm

- Infinite working distance flat field achromatic metallographic objective plan10x / 0.25 working distance 18.48mm

- Infinite working distance flat field achromatic metallographic objective plan20x / 0.40 working distance 8.35mm

- Infinite working distance flat field achromatic metallographic objective plan50x / 0.70 working distance 1.95mm

- Infinite long working distance flat field achromatic metallographic objective plan100x / 0.90 working distance 1mm (optional)

Observation tube:

- Hinged three eye observation tube, 45 ° tilt, pupil distance adjustment range: 48 ~ 76mm,

- Two shift observation cylinder, 100% observation; 20% observation and 80% photography

Coarse and micro focusing device: Low hand coaxial coarse and micro focusing mechanism. The stroke is 38mm, and the fine adjustment accuracy is 0.002mm. With adjusting and tightening device to prevent sliding.

Stage: Three layer mechanical mobile stage, area 210 × 180mm, moving range 50 × 50mm, vernier scale 0.1mm

Lighting: Reflective Cora lighting system 12V / 50W halogen lamp, center adjustable (wide voltage input: 100V ~ 240V), brightness continuously adjustable

Objective converter: Internal positioning five hole converter

Polarizing device: Polarizer, polarizer. The polarizer insert can rotate 360 °

Camera interface: Standard 0.5 × C-mount interface (optional): 1 ×)
