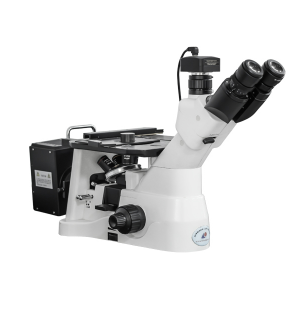

LABTT M-41X Invented Metallographic Microscope

High eye area wide field eyepiece PL10X/22mm

Three eyepiece, eye observation tube, observation and photographic ratio, lo 45 ° inclined, pupil distance adjustment range ：54-75mm；

Low - hand coaxial rough fine - tuning focus mechanism.Movement 38mm，precision fine-tuning0.002mm, adjustable elastic device to prevent slipping

Five-hole converter，reflector cora illuminator with a variable aperture and a central adjustable aperture.

12V50W halogen light，wide voltage100V-240V，the brightness is continuously adjustable. Fixed platform size：160mmX250mm.

10XLMPL10X/0.3 WD10mm

20XLMPL20X/0.45 WD4mm

50XLMPL50X/0.55WD7.8mm

100XLMPL100X/0.80 WD2.1mm(optional)

12V50W halogen light，the filament center is adjustable，the focal length can be adjusted

Metal carrier platform（Center hole diameter 12mm）

Mechanical ruler，movement 120（X）*78（Y）mm

Rectangular loading table

Stage extension

Polarizing lens insert

Biased lens insert，can be 360 ° rotation

Filter(blue, green)

1/2CTV(0.5X),C-mount,adjustable focal

Multiplying power: 50X、100X、200X、500X adjustable（standard 10X eyepiece）

Light source: Reflective cora lighting system（12V50W halogen light），brightness can be adjusted
