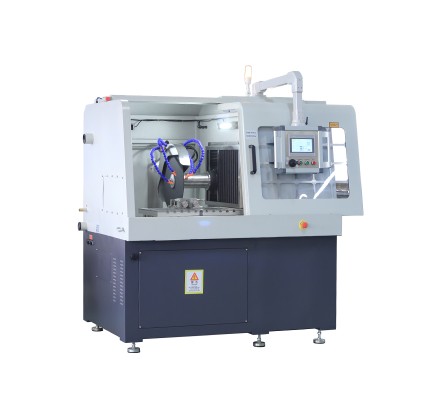

LABTT LC-500ZAYAXA Super Large Automatic Metallographic Cutting Machine

Maximum cut section: Φ85mm

Grinding wheel specifications: 300*2*32

speed: 2800r/min

Motor: 2.2KW 380V 50HZ

Emergency braking device: Emergency stop switch

Cutting room lighting: Low voltage DC lighting

Cutting platform specification: 210*208mm

Clamping device: Standard quick fixture (one group on the left and one group on the right)

cooling system: External circulating filter water tank 40L, multiple groups of adjustable water spraying devices and cleaning water guns

Cutting mode: Manual cutting

Observation window: Explosion proof transparent engineering plastics

Overall dimension: 680*670*640mm
