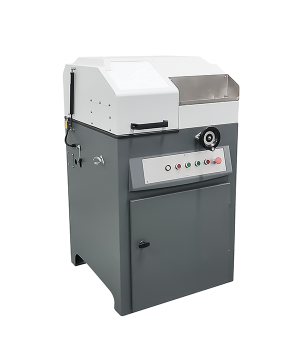

LABTT LC-300Y Metallographic wire cutting machine

Maximum cutting area: Φ85mm

Speed: 2800r/min

Cutting blade specification: 300*3*32

Motor: 3KW,380V,50HZ

Emergency braking device: Emergency stop switch

Cutting room lighting: Low voltage DC lighting

Cutting platform specification: 240*232mm

Clamping device: Standard quick fixture (one group on the left and one group on the right)

cooling system: External circulating filter water tank 40L, multiple groups of adjustable water spraying devices and cleaning water guns

Cutting mode: Manually move the cutting in the Y direction

Viewing window: Explosion proof transparent engineering plastics

Overall dimensions: 768*780*1285mm

Weight: 250KG
