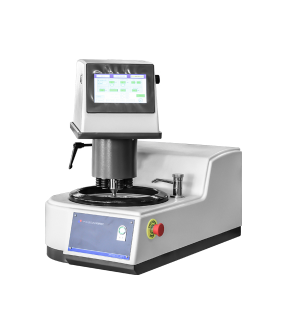

LABTT LAP-1000 Fully automatic metallographic grinding and polishing machine (30-200r/min)

station: single disc

Working disc diameter: standardφ254mm (optionalφ230mm, φ203mm) with magnetic switchboard system

Rotate speed: 50-1000r/min The forward and backward rotation can be switched

Grinding head speed: 30-200r/min

Manual mode: can select 30 sets of parameters, each set set and called separately

Automatic mode: 30 sets of process (process), each set of process contains 10 steps of process parameters (from process 1 to process 10 automatically, each step has an independent set of parameters)

Sample holder: 30mm can be 6 holes (optional 20mm 6 holes, 40mm, 50mm 3 holes, others can be customized)

Grinding head locking mode: Electromagnetic automatic lock

Working air source pressure range: More than 0.6MPa

Motor power: 0.75Kw

Input voltage: AC220V，50/60Hz，2KW

Dimension: 760x470x700

Weight: 63kg
