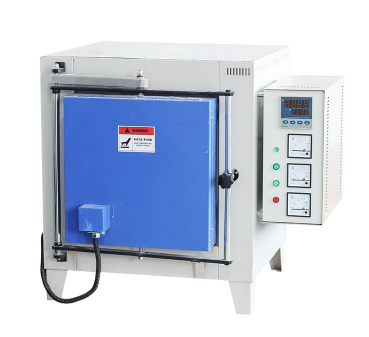

LABTT JFH-27X Special heating furnace for end quenching test (1200 ℃)

Rated temperature: 1200 ℃ Furnace size: 300X300X300mm (LXWXH)

Furnace body type: box type heating time: ≤ 80 min

Rated power: 10.0 KW Power supply voltage: 380V/3 Φ

Temperature control type: SSR PID intelligent instrument Temperature control accuracy: ≤± 1.5 ℃

Heating element: resistance wire Furnace material: mullite products

Heating method: six side heating 1200 ℃ Furnace temperature uniformity: ≤ 3.0 ℃

Overall dimension: 850 × nine hundred × 750mm Weight: 150KG

Intelligent instrument: high-precision temperature control meter, multi-stage programmable automatic control, PID regulation temperature control accuracy.

Communication function: configure RS485 communication interface and communication monitoring software (optional)
